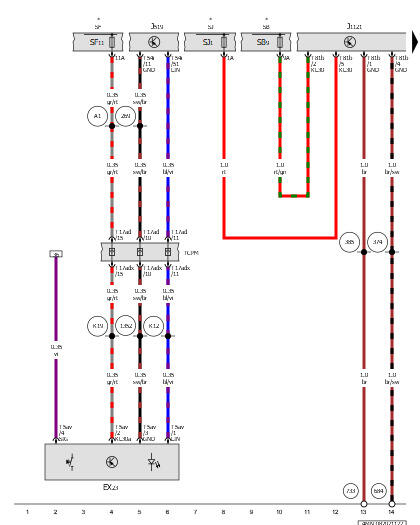

Center Console Switch Module 1, Vehicle Electrical System Control Module, Driver Assistance Systems Control Module
EX23
Center Console Switch Module 1
J519
Vehicle Electrical System Control Module
J1121
Driver Assistance Systems Control Module
SB
Fuse Panel B
SB9
Fuse 9 (On Fuse Panel B)
SF
Fuse Panel F
SF11
Fuse 11 (On Fuse Panel F)
SJ
Fuse Panel J
SJ1
Fuse 1 on Fuse Panel J
T5av
5-Pin Connector, Black
T17ad
17-Pin Connector, Black
T17adx
17-Pin Connector, Black
T54i
54-Pin Connector, Black
T81b
81-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
269
Sensor Ground Connection 1 (in Instrument Panel Wiring Harness)
374
Ground Connection 9 (in Main Wiring Harness)
385
Ground Connection 20 (in Main Wiring Harness)
684
Ground Connection on Left Front Side Member
733
Ground Connection 3 in Luggage Compartment, Left
1352
Ground Connection 5 (in Center Console Wiring Harness)
A1
Positive Connection 30a (in Instrument Panel Wiring Harness)
K12
LIN Bus Connection (in Center Console Wiring Harness)
K19
Connection 2 (30) (in Center Console Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
