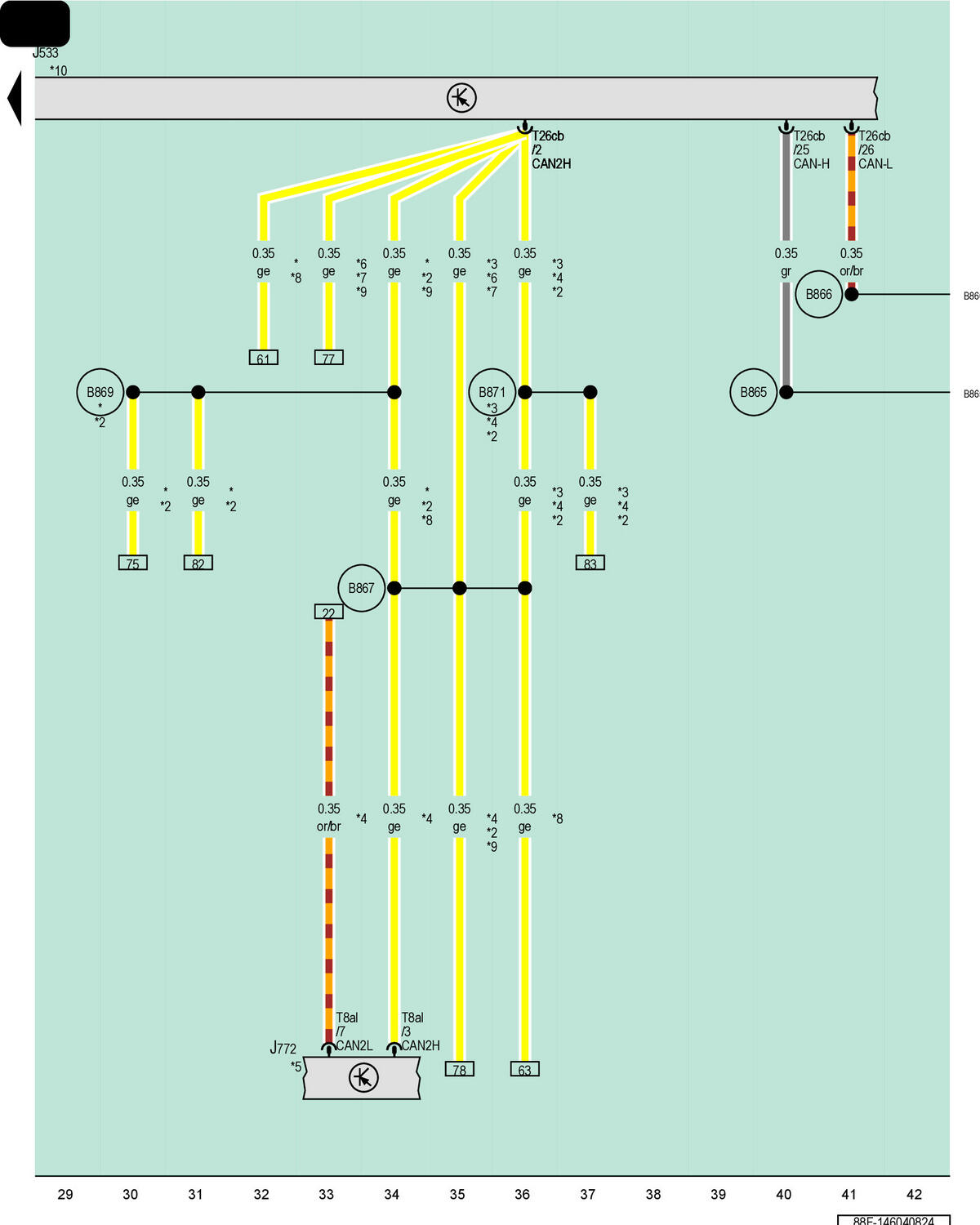

Data Bus On Board Diagnostic Interface, Rearview Camera System Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J772

Rearview Camera System Control Module

T8al

8-Pin Connector, Black

T26cb

26-Pin Connector, Black

B865

Driver Assistance Systems CAN Bus High Connection 1 (in Main Wiring Harness)

B866

Driver Assistance Systems CAN Bus Low Connection 1 (in Main Wiring Harness)

B867

Driver Assistance Systems CAN Bus High Connection 2 (in Main Wiring Harness)

B869

Driver Assistance Systems CAN Bus High Connection 3 (in Main Wiring Harness)

B871

Driver Assistance Systems CAN Bus High Connection 4 (in Main Wiring Harness)

*

For RHD Vehicles

*2

For Vehicles with Peripheral Camera

*3

For LHD Vehicles

*4

For Vehicles with Rearview Camera System

*5

Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)

*6

For Vehicles Without Rearview Camera System

*7

For Vehicles without Peripheral Camera

*8

For Vehicles with Lane Assistance

*9

For Vehicles Without Lane Assistance

*10

Refer to Applicable Wiring Diagram for Data Bus Networking
