Rear Lid Control Module -J605- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

Behind side trim, in left luggage compartment.

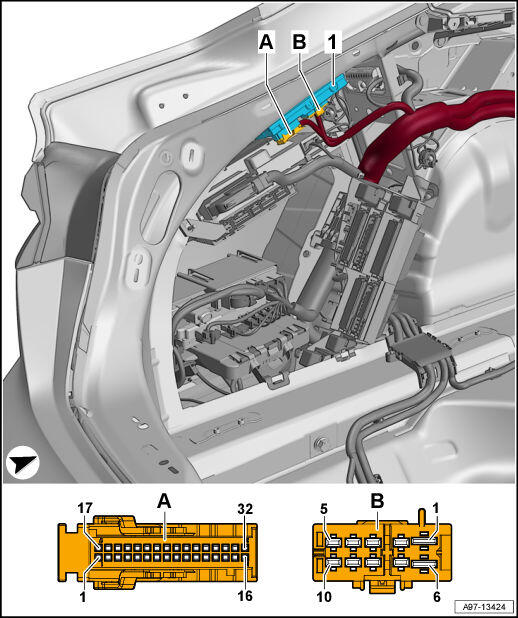

Fig 1: Rear Lid Control Module -J605- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Control Module -J605-

1. 10-Pin Connector -T10q-, black
2. 32-Pin Connector -T32e-, black
