Electrical machine electronics (EME)

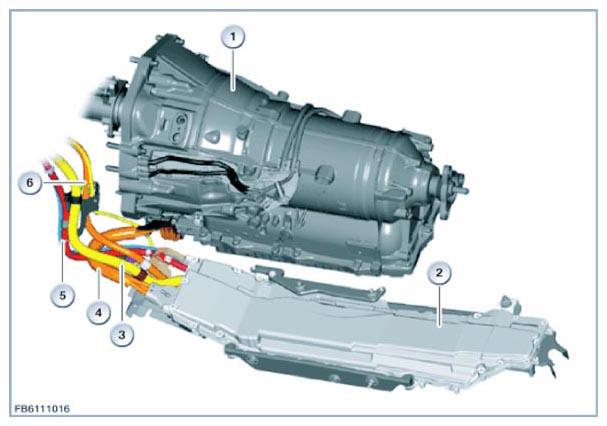

| Index | Explanation |
|---|---|
| 1 | gearboxGA8P70HZ |
| 2 | Electrical machine electronics (EME) |
| 3 | Signal lines (connection of the electronic connector) |
| 4 | High-voltage cables to electrical machine for the phases U, V, W |
| 5 | Coolant lines for cooling the EME |
| 6 | High-voltage cable to the electric compressor |
The Electrical Machine Electronics (EME) integrate the following components:
- Inverters for controlling the electrical machine
- DC/DC converter (2.4 kW) for transferring energy in both 12 V electrical system and high-voltage electrical system
- Control unit
The EME controls the starter unit (auxiliary battery with an intelligent battery sensor and cut-off relay).
