31 00... Notes on repairing threads

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

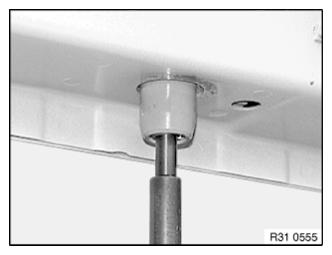

NOTE: Damaged threads on the engine support may be repaired with Helicoil thread inserts. Follow the procedure described in the example.

Courtesy of BMW OF NORTH AMERICA, INC.

Procedure:

Create a clean core hole; if necessary, drill out screw remnants

Courtesy of BMW OF NORTH AMERICA, INC.
Create locating thread for Helicoil thread insert

Courtesy of BMW OF NORTH AMERICA, INC.
Pick out Helicoil thread insert in accordance with the appropriate table and screw into the locating thread until flush with the original thread; refer to NOTES ON REPAIRING THREADS .

Courtesy of BMW OF NORTH AMERICA, INC.
Break drive pin and remove

Courtesy of BMW OF NORTH AMERICA, INC.
