Installation Procedure

  1. Install the memory seat module (1) and the bracket.

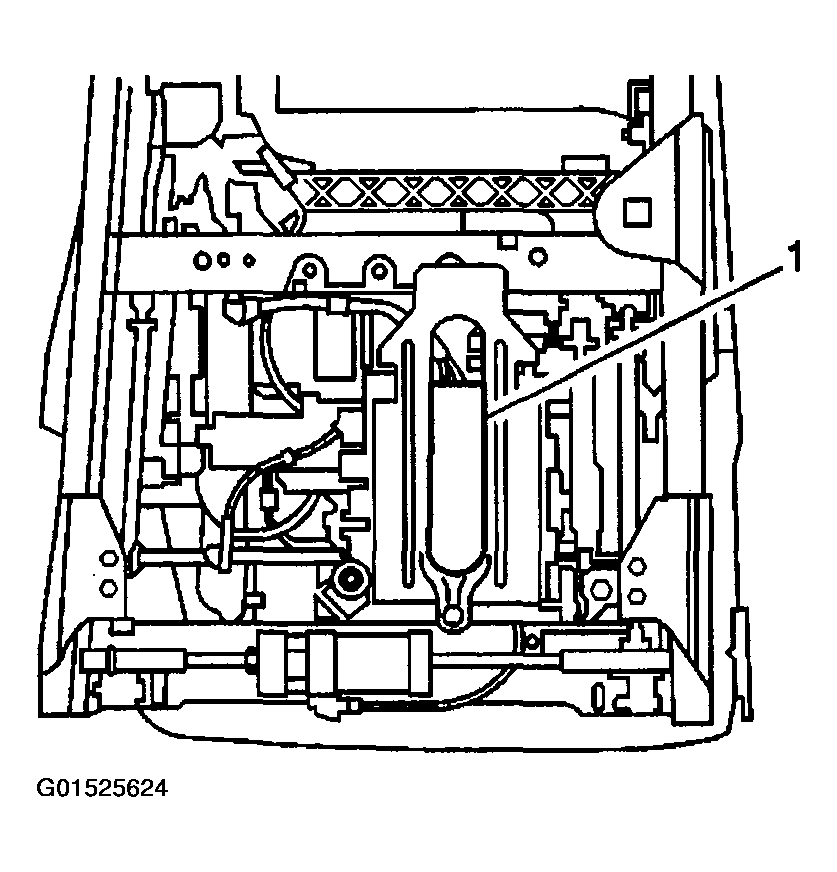

    Fig 1: Installing Memory Seat Module And Bracket
    G01525624Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 rear fasteners to the bracket.
  3. Connect the electrical connector.
  4. Install the seat.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the seat anchor bolts.

    Tighten

    Tighten the seat anchor bolts to 41 N.m (30 lb.ft).

  6. Install the 2 front fasteners to the bracket.
  7. Install the front track cover.
