Wiper/Washer System Schematics

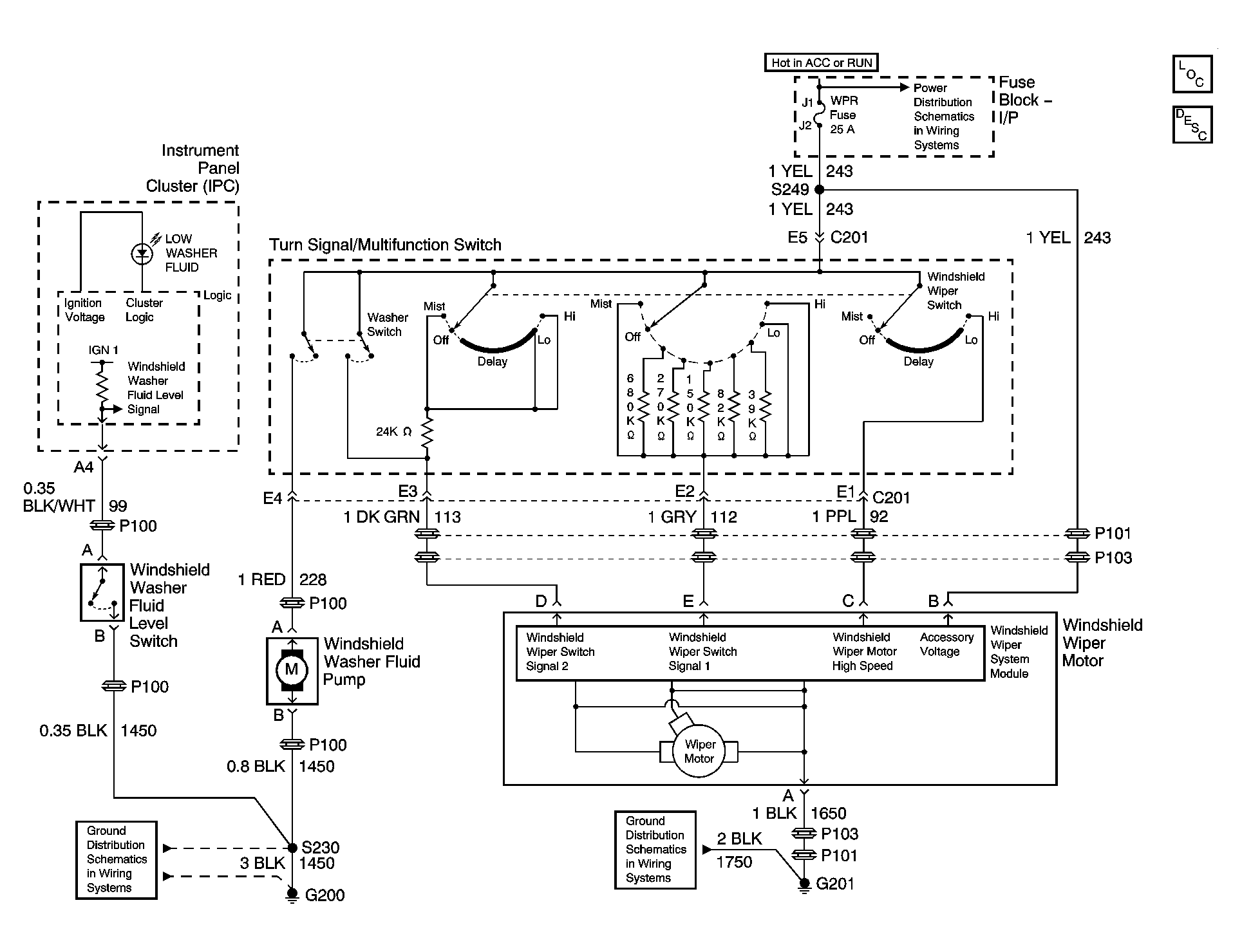

Fig 1: Wiper/Washer System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
