Amplifier, Sound System
Component Connector End Views

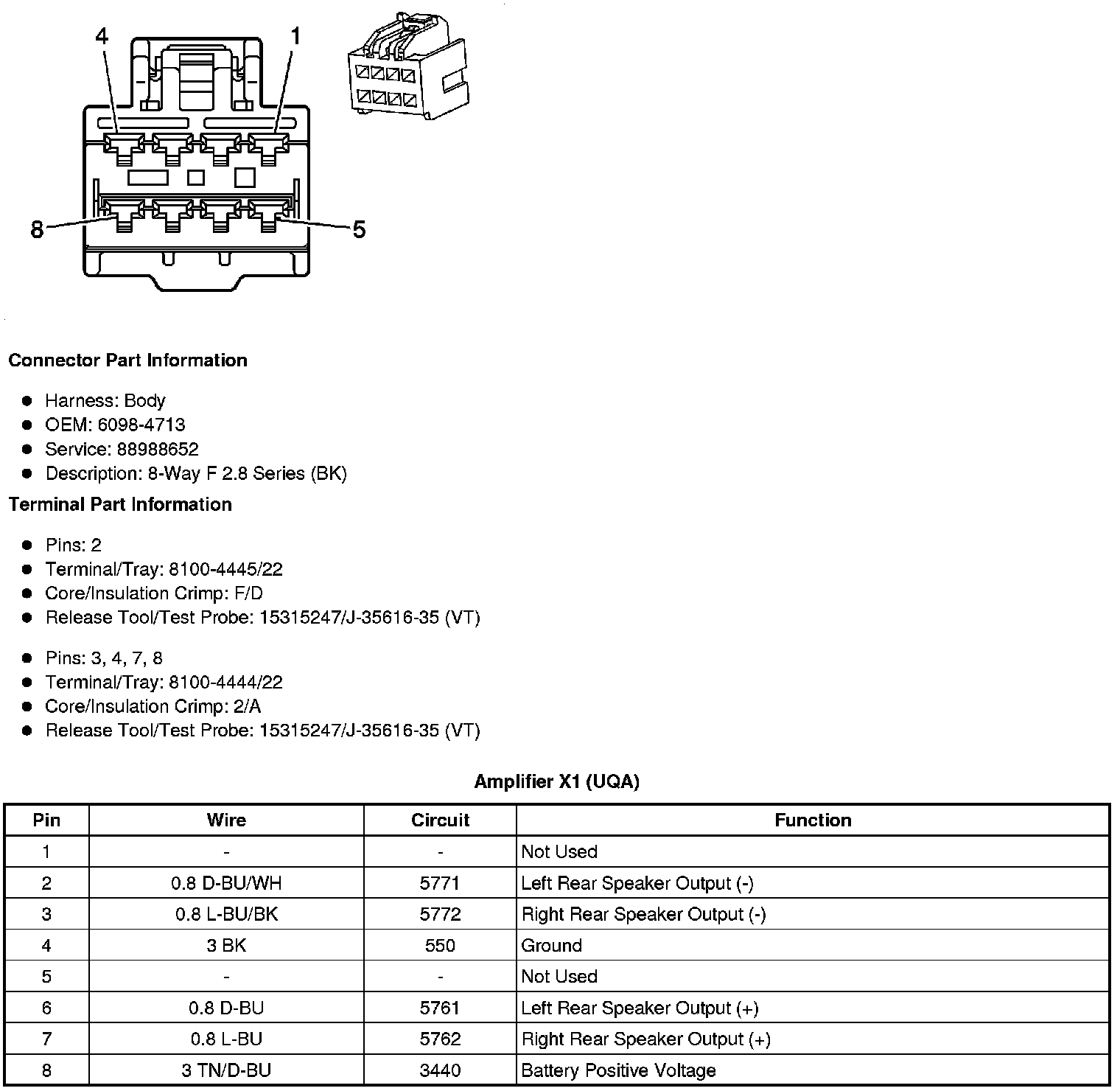

Amplifier
X1 (UQA)

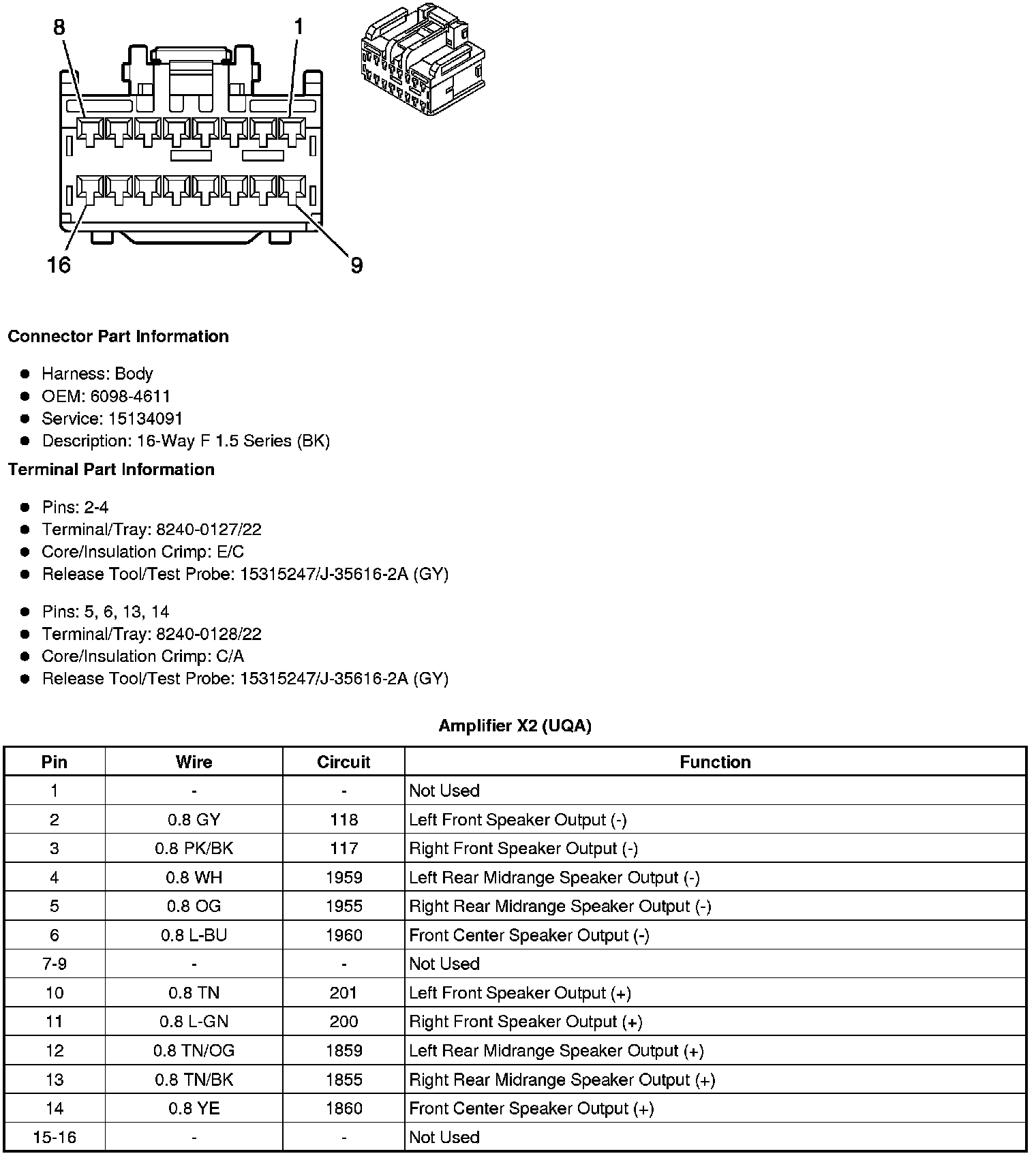

Amplifier
X2 (UQA)

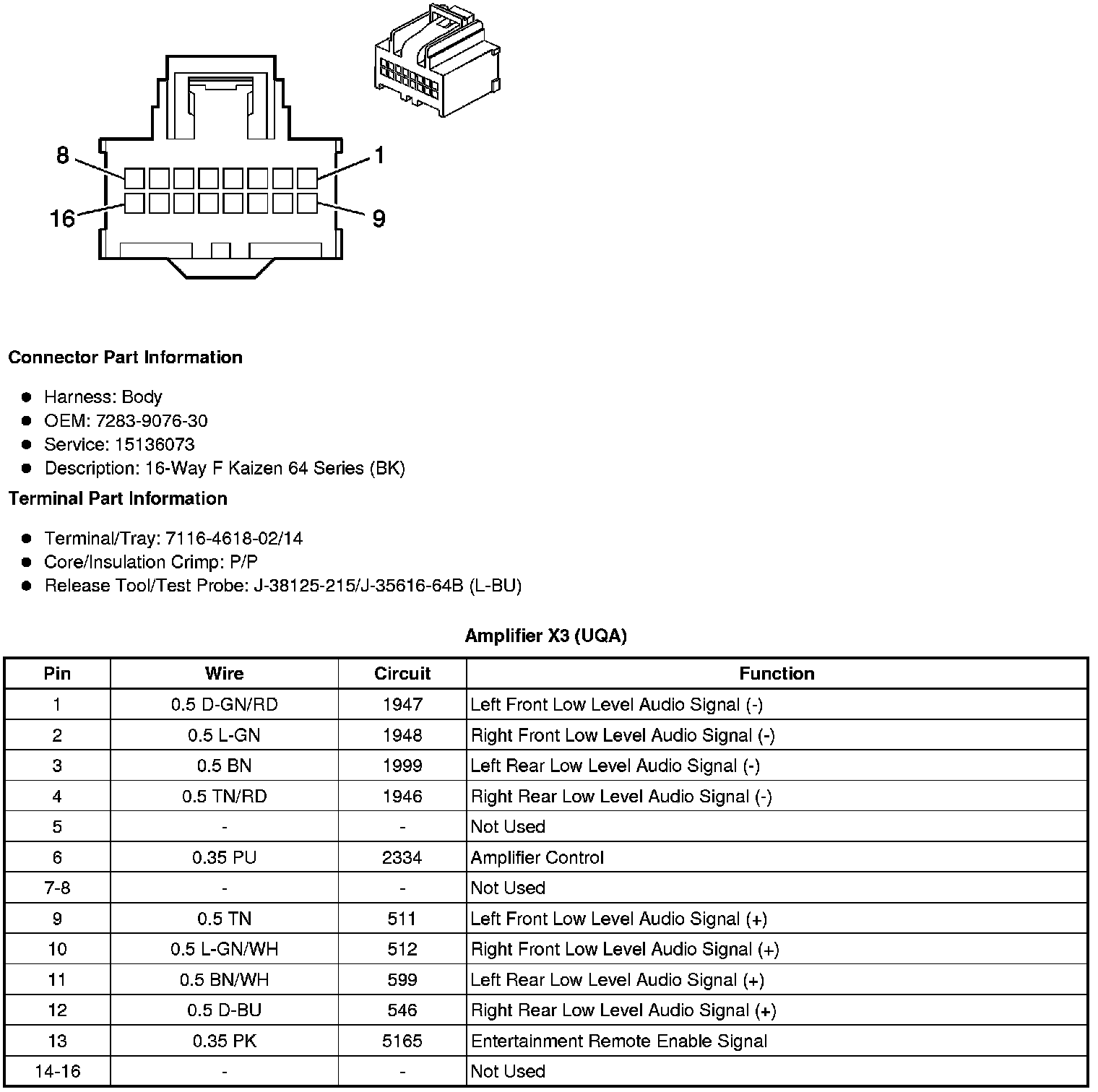

Amplifier
X3 (UQA)
