USB Receptacle Replacement

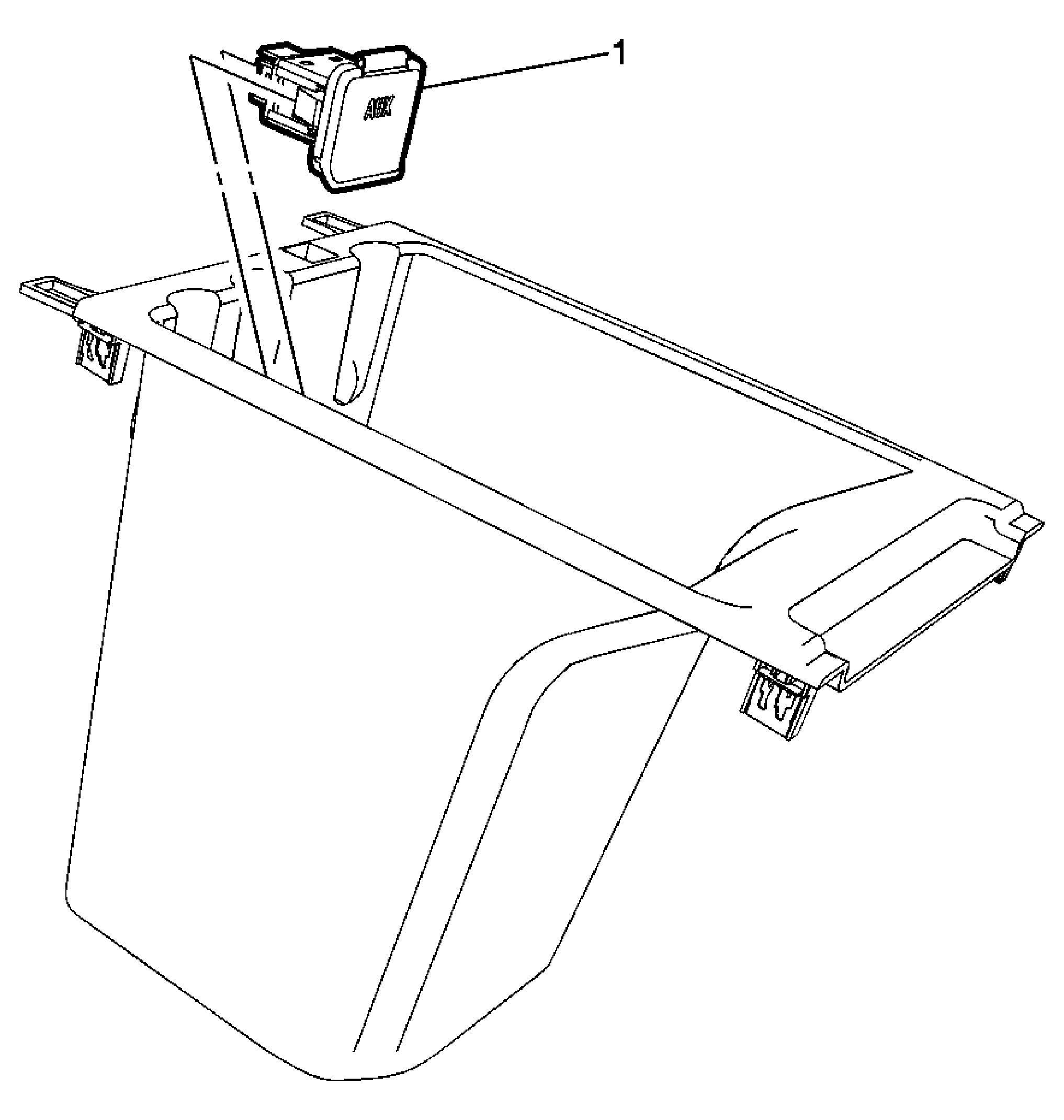

Fig 1: USB Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement
1	USB Receptacle Procedure Depress the tabs to remove the receptacle. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement

USB Receptacle

Procedure
