Interior Roof Mounted System Components

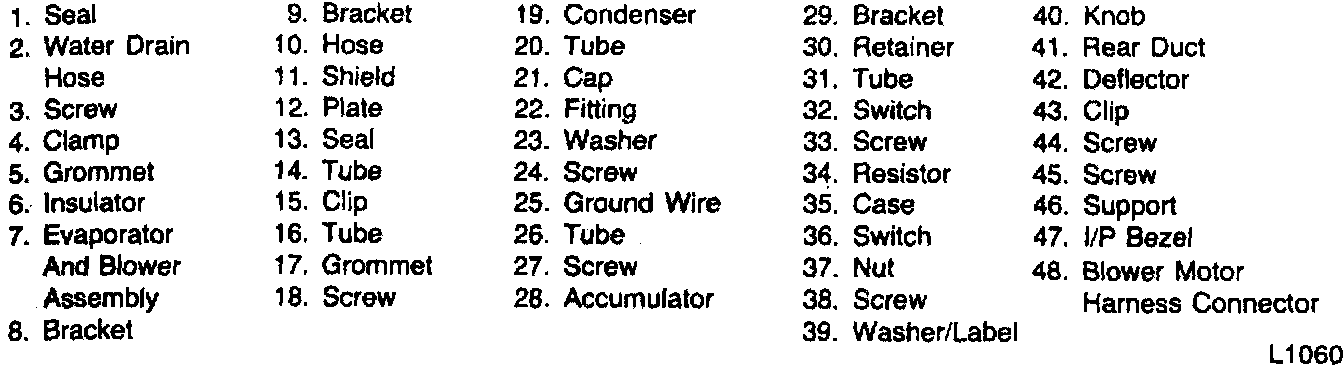

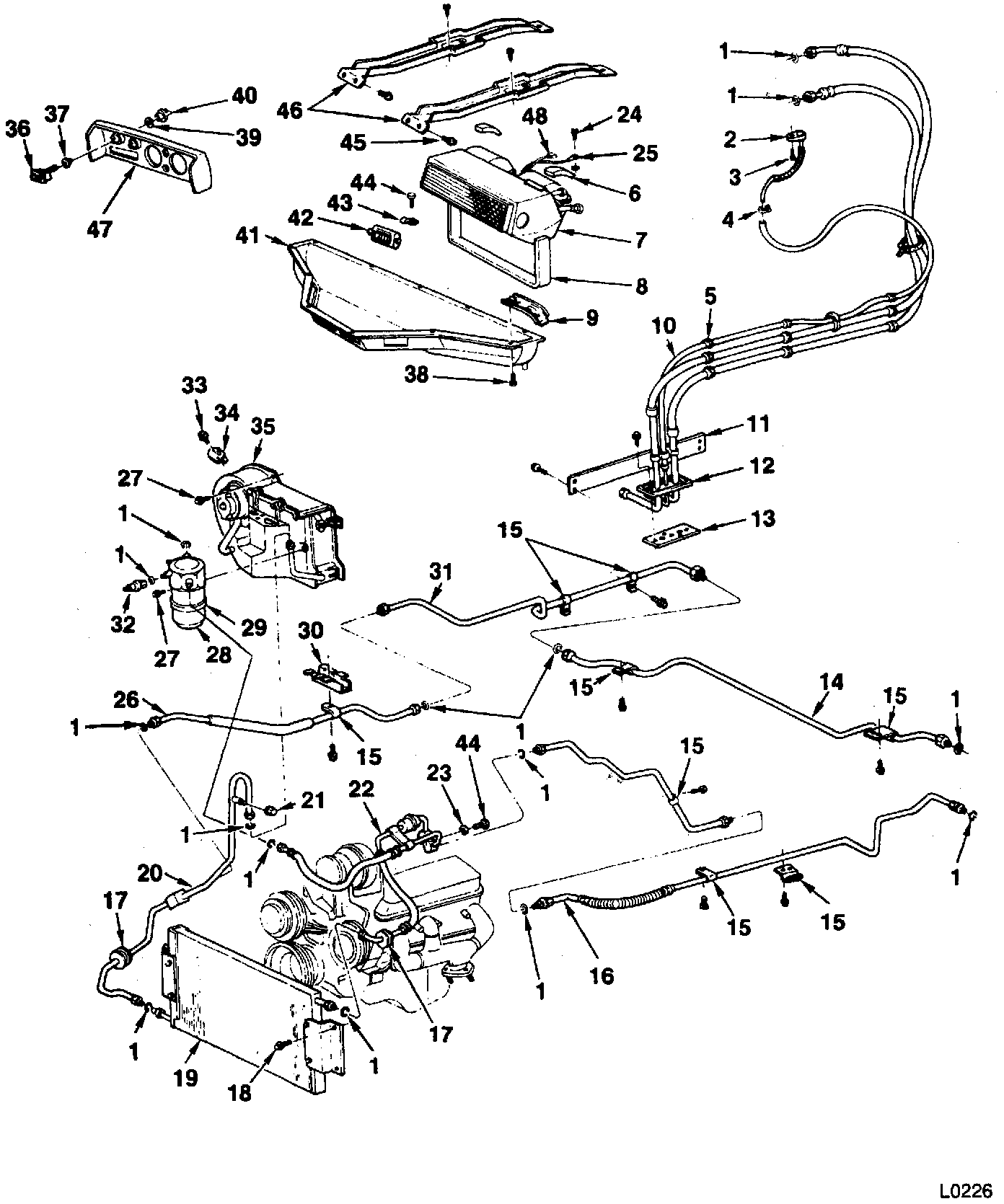

Interior Roof Mounted System - Component View (1 Of 2):



Interior Roof Mounted System - Component View (2 Of 2):
