Steering Wheel Secondary/Configurable Control Schematics

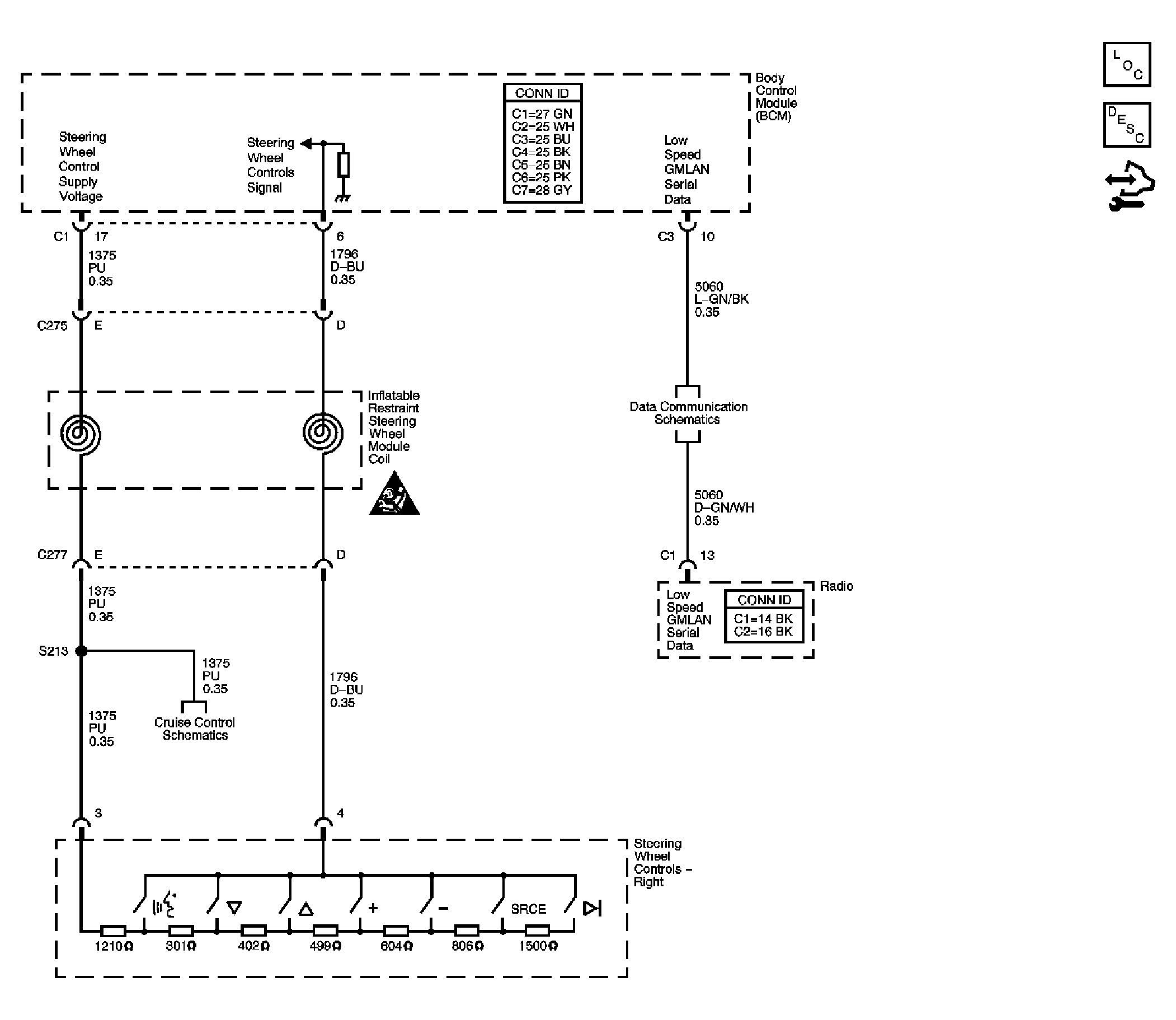

Fig 1: Steering Wheel Secondary/Configurable Control Schematics
GM1762304Courtesy of GENERAL MOTORS CORP.
