Door Control Module Schematics

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

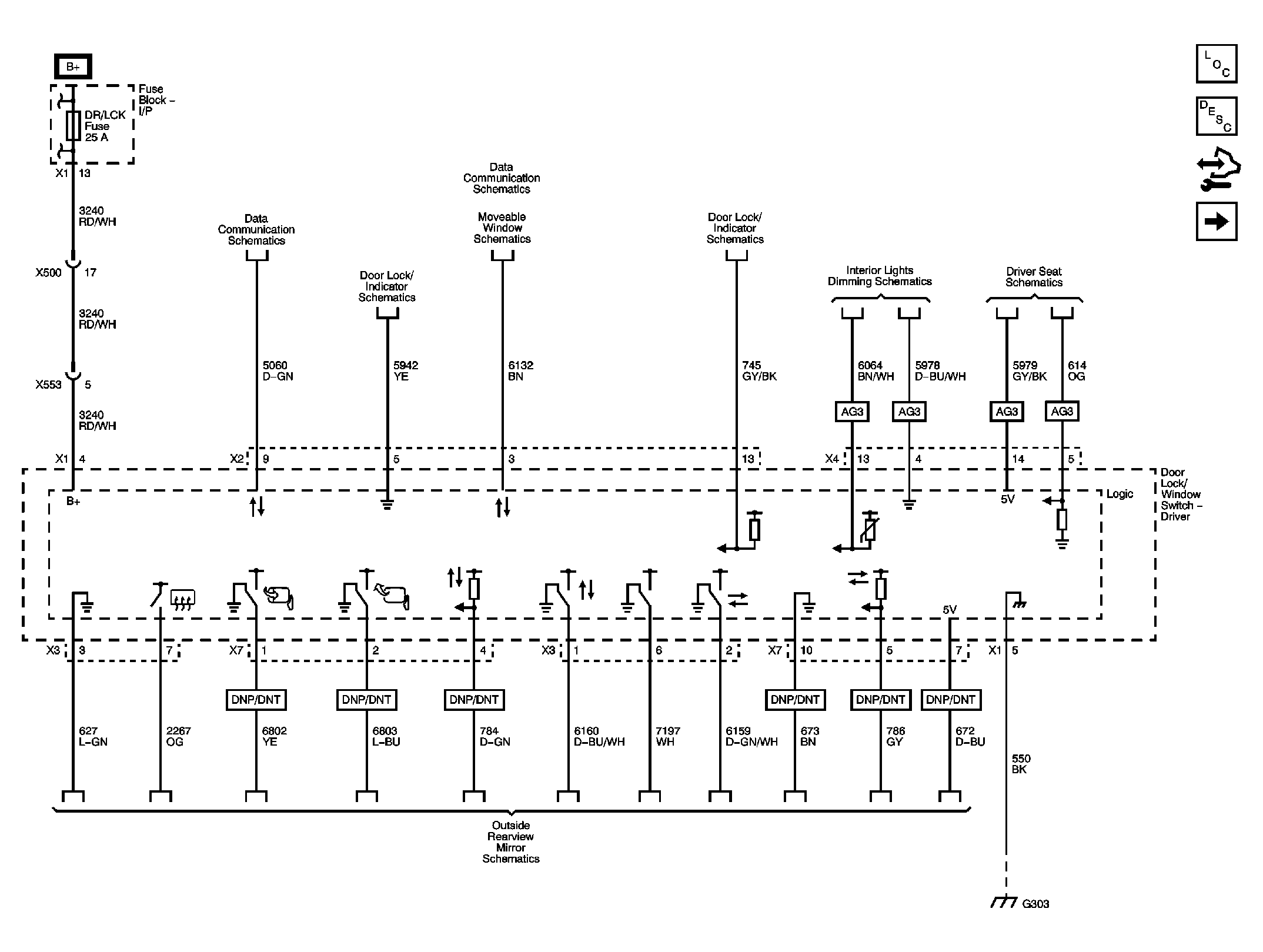

Fig 1: DDM Power, Ground & all except KA1 or KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

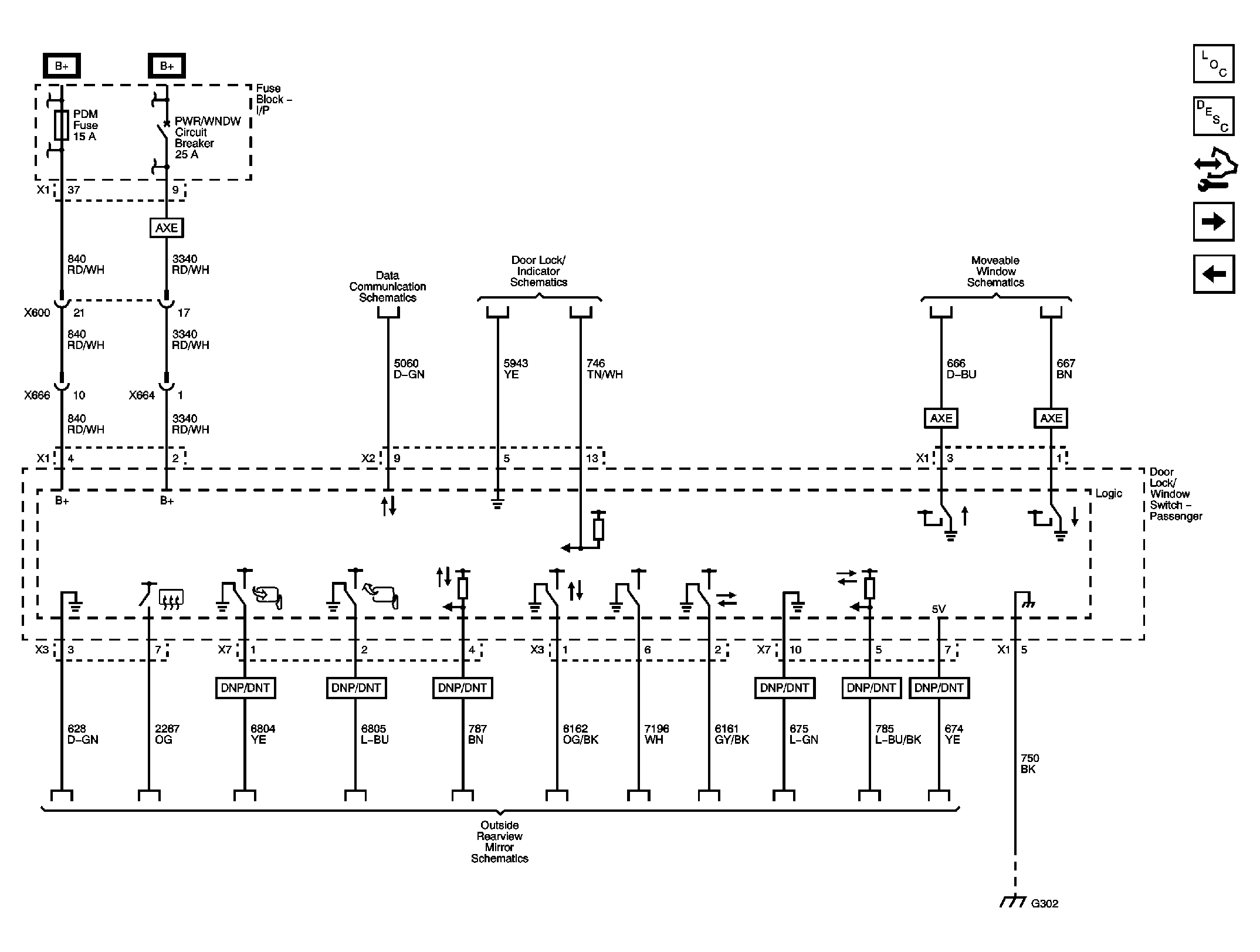

Fig 2: PDM Power, Ground & all except KA1 or KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

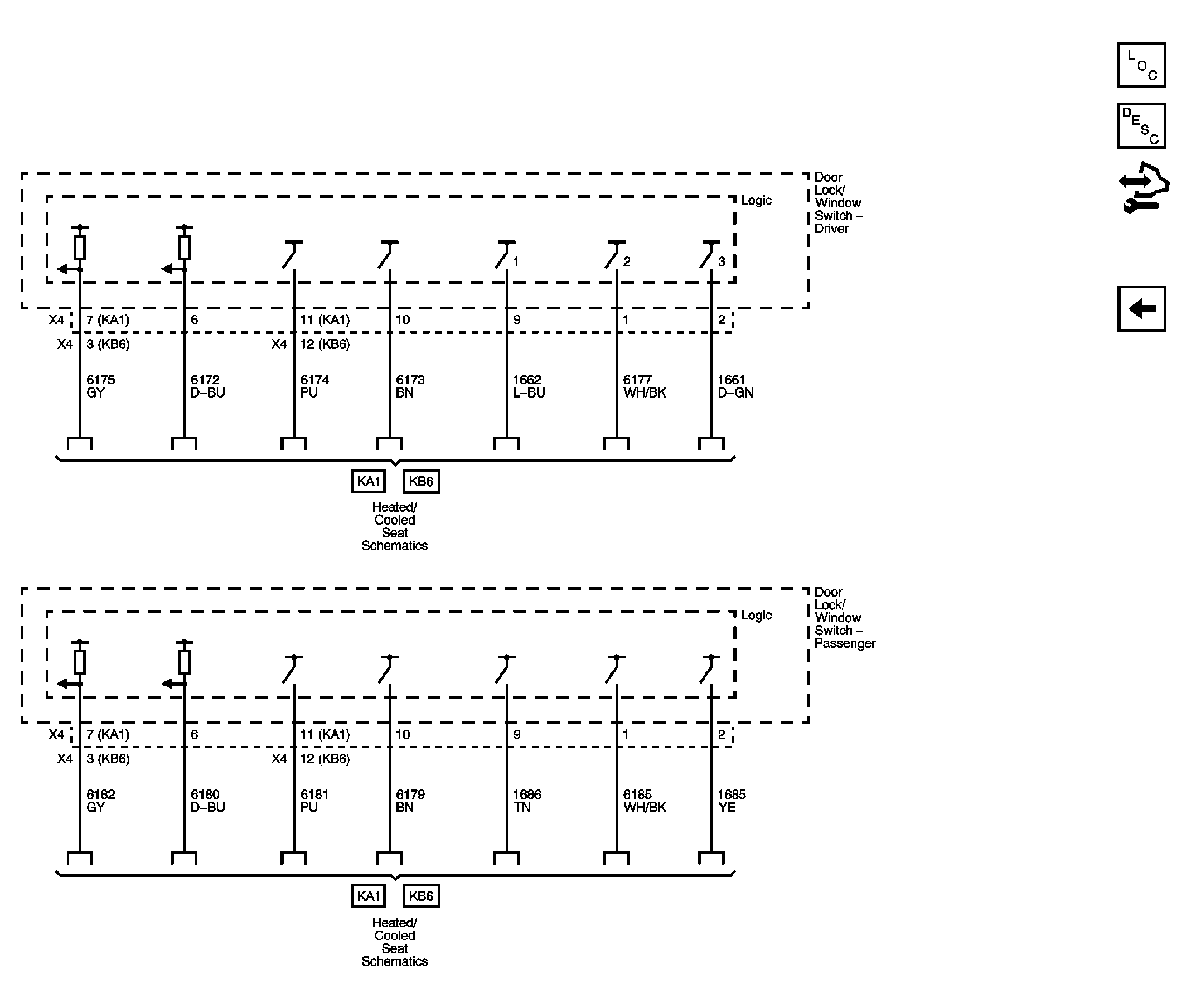

Fig 3: KA1 & KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
