Rear Differential Clutch Control Module (MH4)

Wheels/Vehicle Underbody Component Views

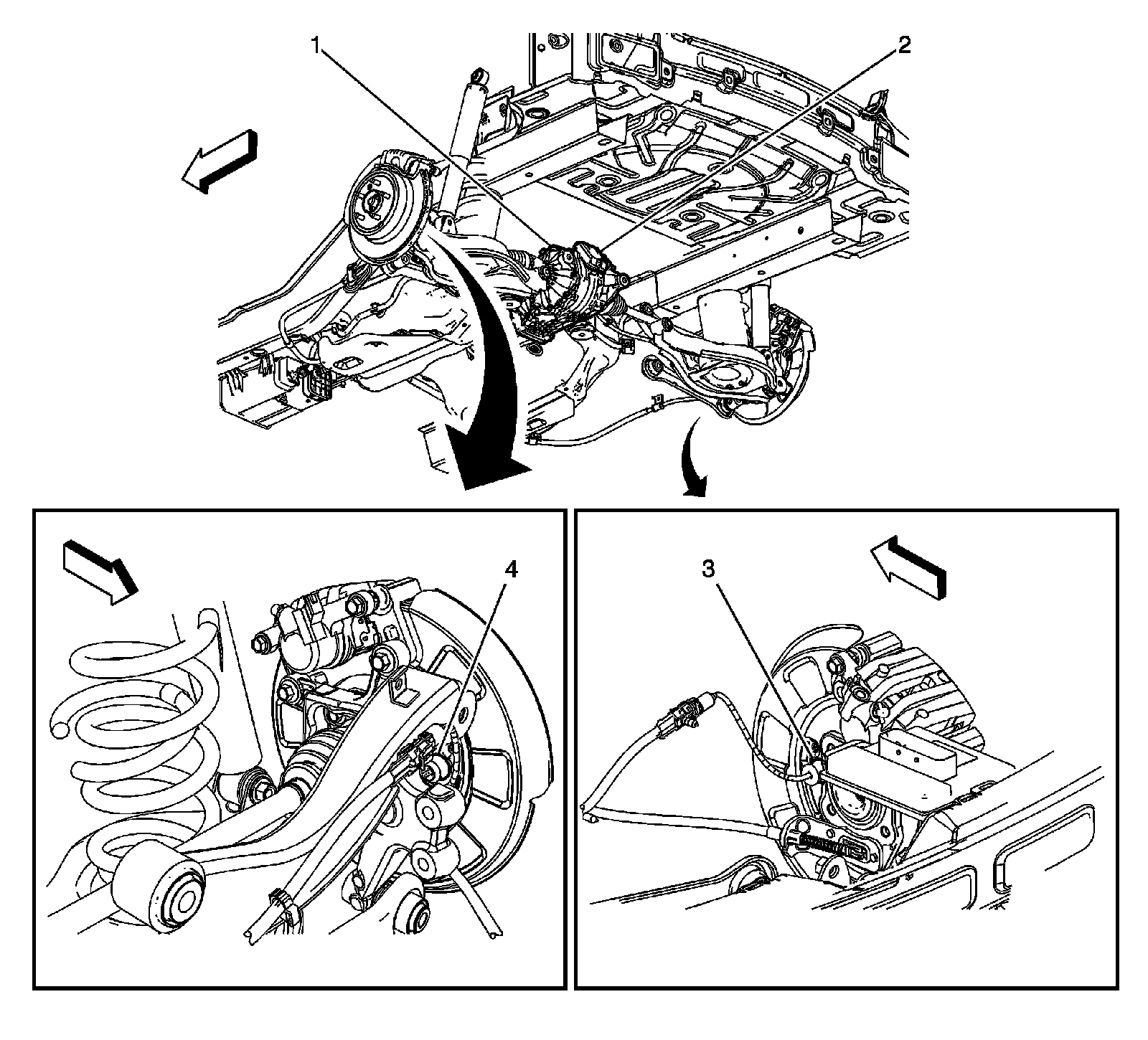

Rear Frame and Underbody Components





1 - Rear Wheel Drive Module Clutch (MH4)

2 - Rear Differential Clutch Control Module (MH4)

3 - Wheel Speed Sensor (WSS) - Right Rear

4 - Wheel Speed Sensor (WSS) - Left Rear
