Parking Brake Control Module: Locations

Wheels/Vehicle Underbody Component Views

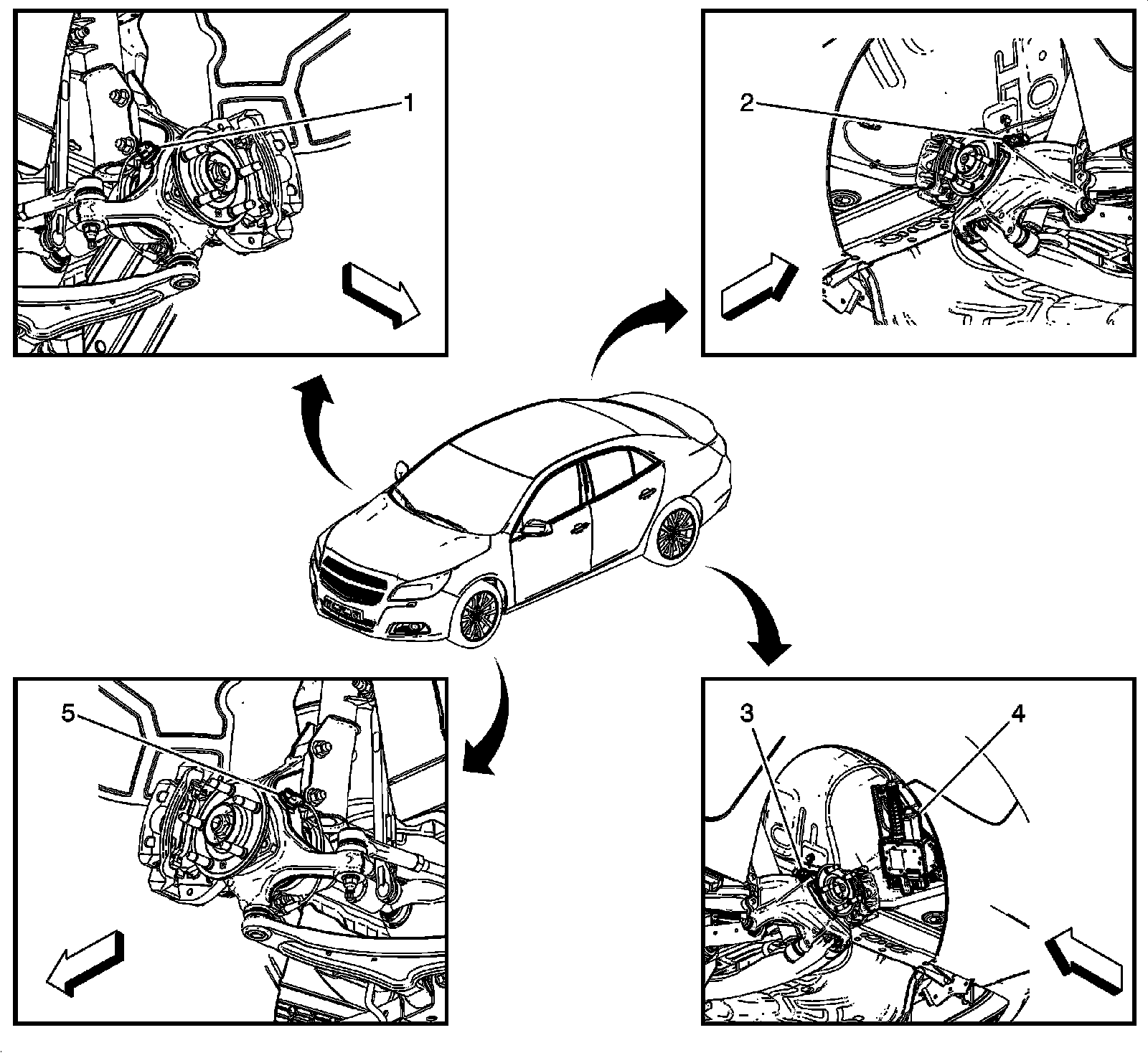

Wheel Speed Sensors and Park Brake Control Module





1 - B5RF Wheel Speed Sensor- Right Front

2 - B5RR Wheel Speed Sensor- Right Rear

3 - B5LR Wheel Speed Sensor- Left Rear

4 - K83 Parking Brake Control Module

5 - B5LF Wheel Speed Sensor- Left Front
