Front Side Turn Signal Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

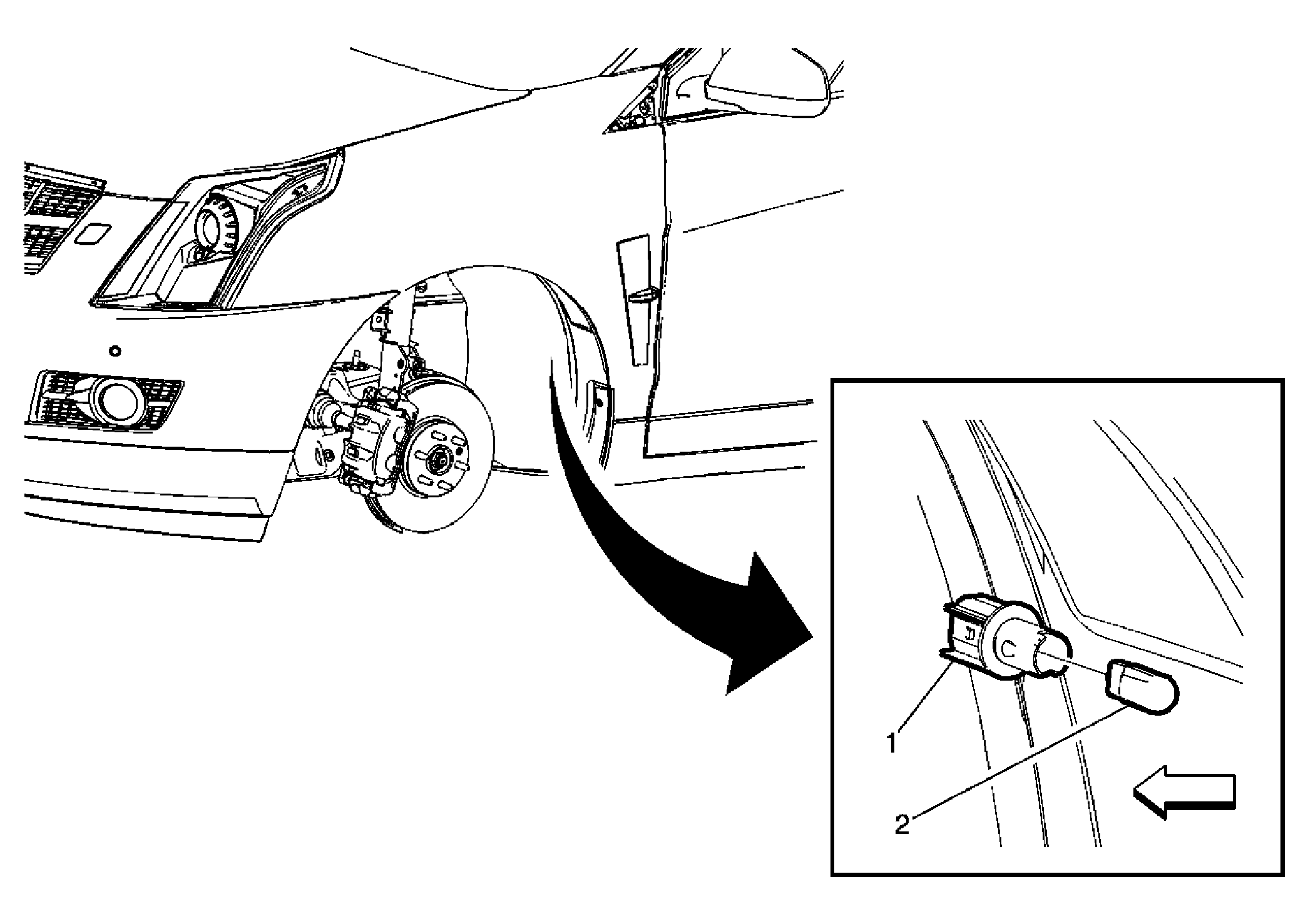

Fig 1: Identifying Front Side Turn Signal Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Reach inside the fender well and rotate the bulb socket a quarter turn and remove. Pull the turn signal lamp bulb from the lamp socket.
1	Front Side Turn Signal Lamp Socket Tip: Ensure the fingers on the turn signal lamp socket point forward upon installation. If the socket fingers point rearward, the bulb socket will not seal in the lamp housing.
2	Front Side Turn Signal Lamp Bulb

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Reach inside the fender well and rotate the bulb socket a quarter turn and remove.
Pull the turn signal lamp bulb from the lamp socket.

Front Side Turn Signal Lamp Socket
Tip: Ensure the fingers on the turn signal lamp socket point forward upon installation. If the socket fingers point rearward, the bulb socket will not seal in the lamp housing.

Front Side Turn Signal Lamp Bulb
