System Specifications

SPECIFICATIONS

T350 TRANSAXLE
Bolts that have thread sealer or torque lock patches should not be reused. Always install new bolts in these applications.

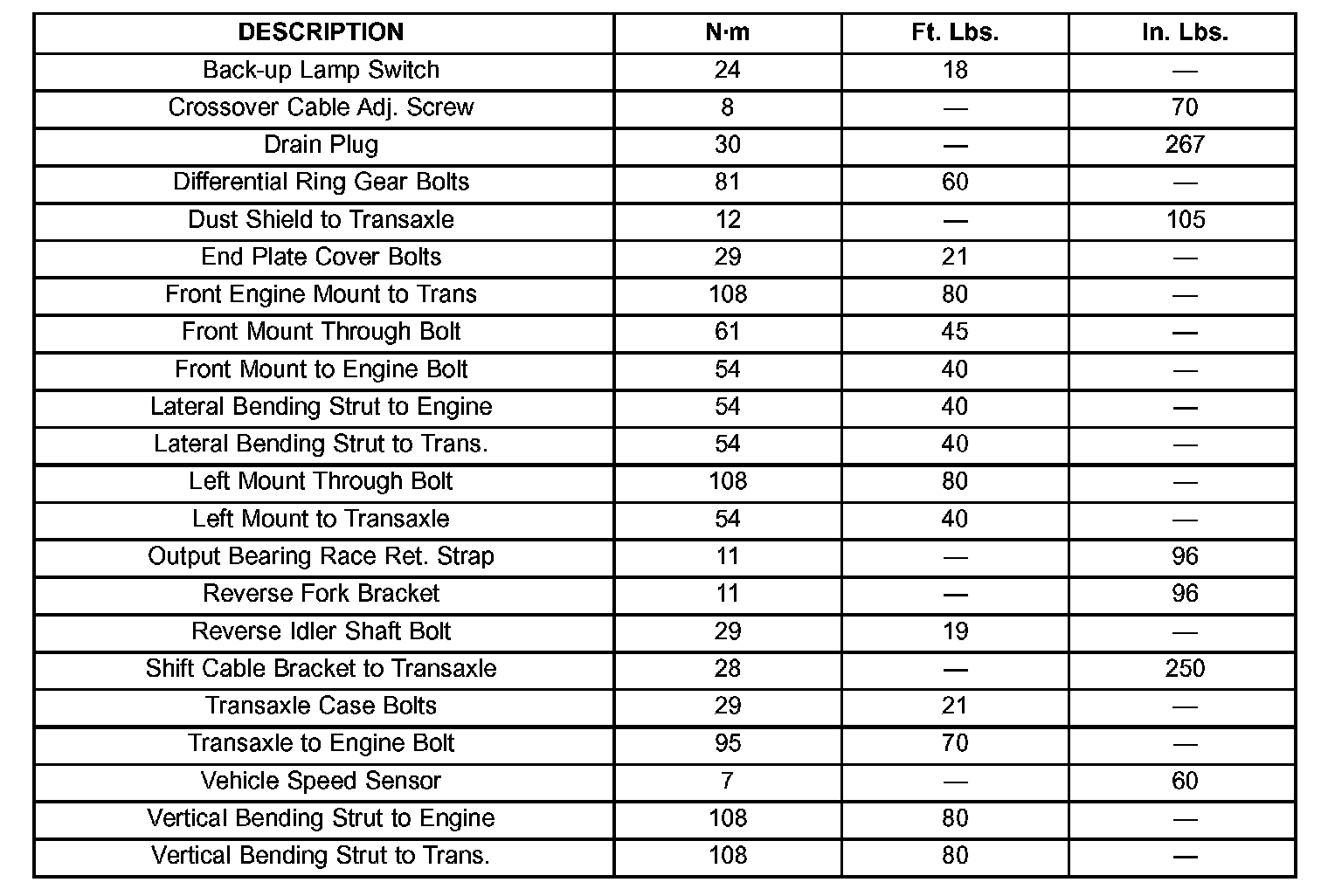

TORQUE SPECIFICATIONS:

SEALANTS
The sealant used to seal the transaxle case halves and input bearing is Mopar Gasket Maker, Loctite 518, or equivalent. The sealant used for the bearing end plate cover is Mopar RTV.
