Fuel Pressure Regulator: Installation
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
The fuel pressure regulator is part of the fuel pump module. Remove the fuel pump module from the fuel tank to access the fuel pressure regulator. Refer to the FUEL PUMP MODULE REMOVAL .

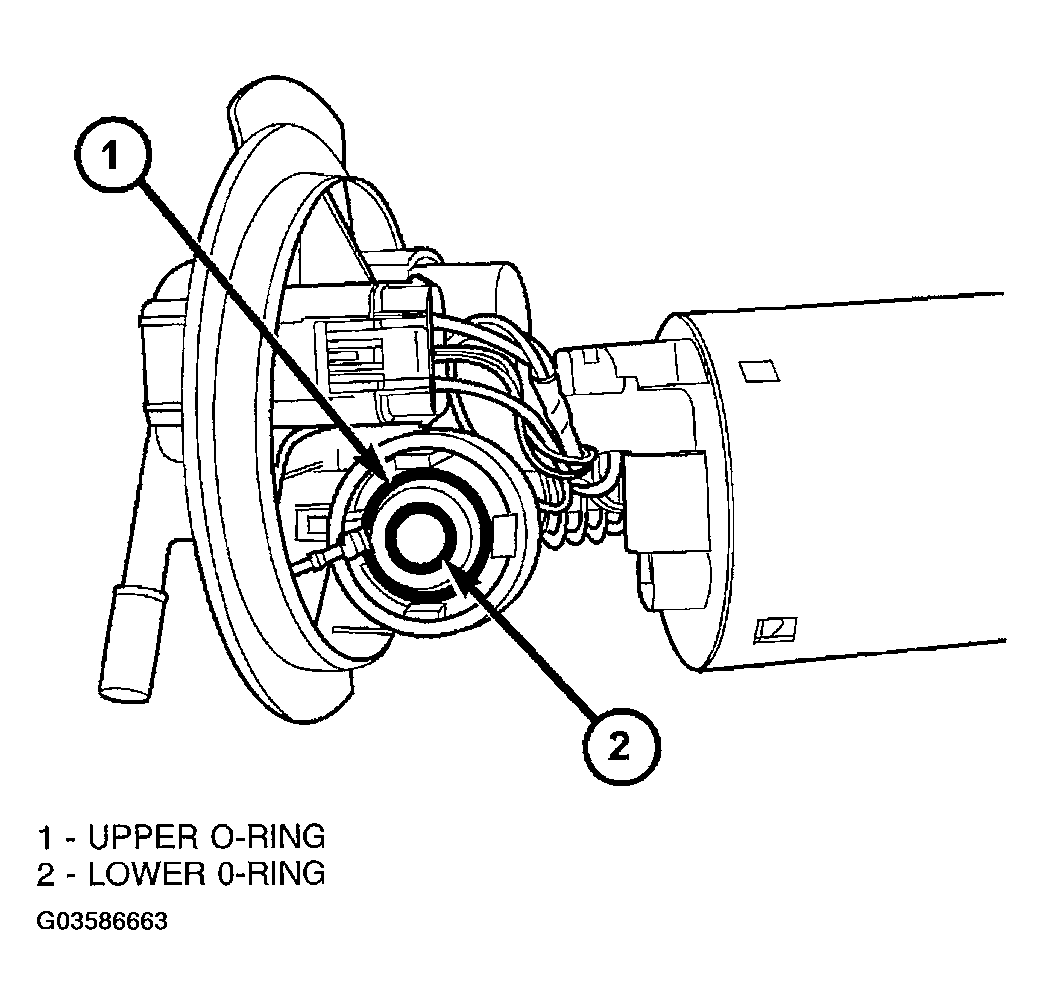

- Lightly lubricate the O-rings with clean engine oil and place them into opening in pump module (Fig 1).
- Push regulator into opening in pump module.
- Retaining tabs snap into housing.
