Section 99 (Power Steering System): Steering: Operation
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

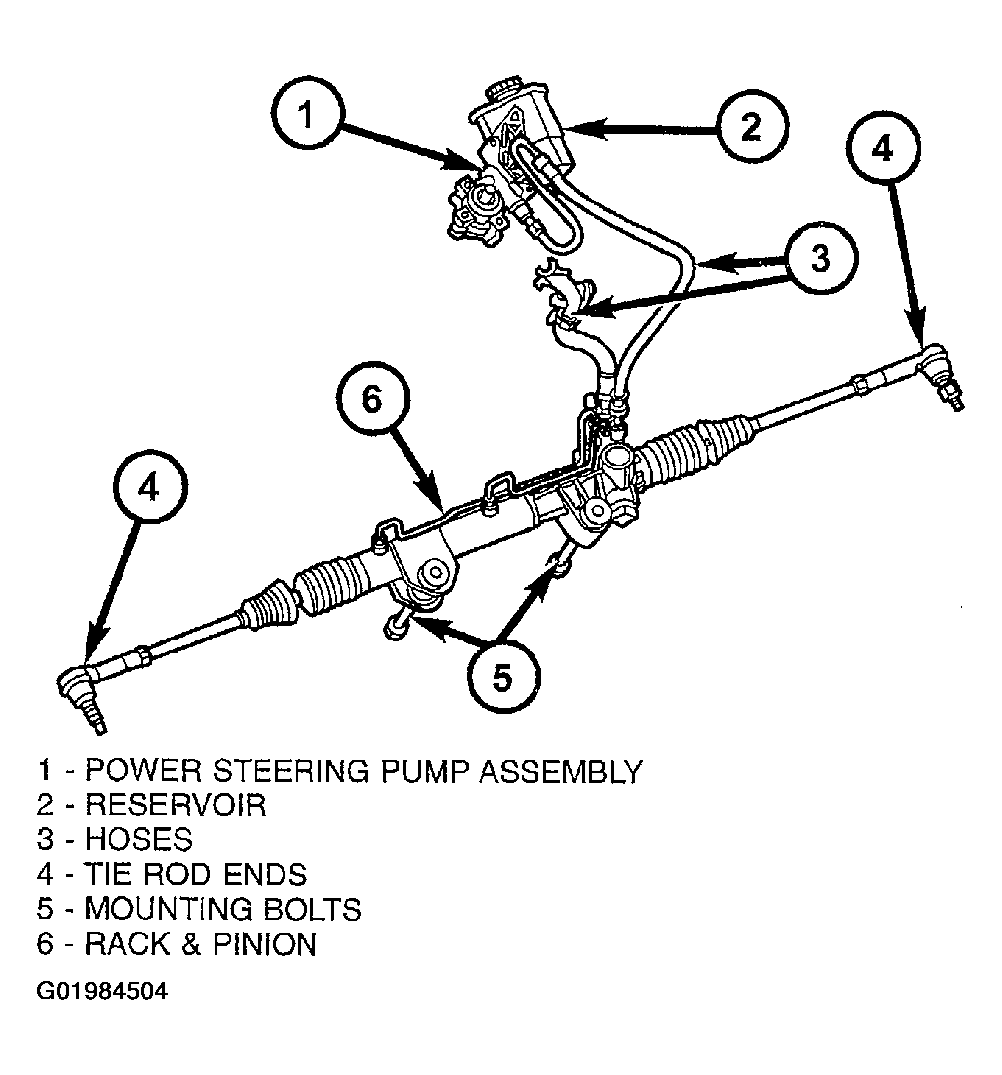

The steering column shaft is attached to the gear pinion. The rotation of the pinion moves the gear rack from side-to-side. This lateral action of the rack pushes and pulls the tie rods to change the direction of the front wheels. (Fig 1).
Power assist is provided by an engine mounted hydraulic pump which supplies hydraulic fluid pressure to the steering gear.
