Removal

3.8L




1. Disconnect the negative battery cable.

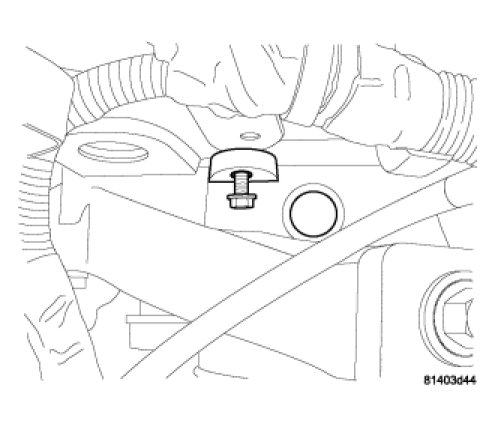

2. Unlock the camshaft sensor electrical connector.

3. Disconnect the electrical connectors to the camshaft sensor.




4. Loosen the mounting bolts.




5. Remove camshaft sensor.




6. Camshaft Position Sensor removed.
