MOTORCRAFT (AUTOLITE) Transistorized Regulator: Description: Notes

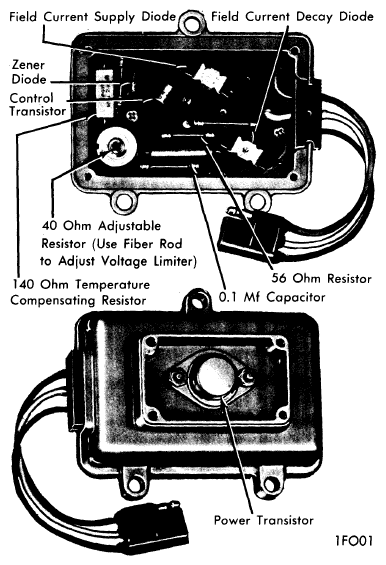

Regulator is sealed unit using transistors and diodes rather than vibrating armature relay. Field relay is mounted separately on 1966-73 models. Regulator and field relay are one unit on 1974 models.
NOTE:
No testing procedure available for 1974 regulator at time of publication.
