"P" Models: Installation

Position column in vehicle and attach column to steering gear. Install eight screws to plates and gaskets at floor pan. Install two bolts and nuts that attach steering column to instrument panel bracket. Connect shift rods to column shift levers. Install steering wheel and connect horn, turn signal and back-up light wires.

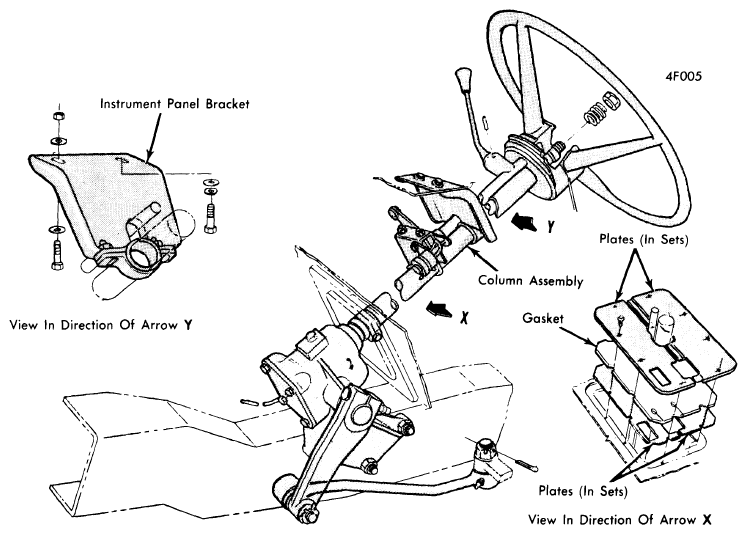

Fig 1: Column Installation 1971-74 "P" Models
G09347987Courtesy of FORD MOTOR CO.
