Alternators - With Integral Regulator: Regulator
Turn ignition switch off when working on regulator. Use care to prevent a short circuit between voltage regulator relay and regulator base when working on regulator. Use an insulated tool when making adjustments.

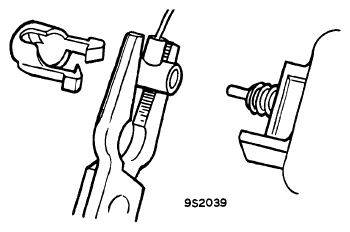

- ERRATIC OPERATION NOTE - Erratic operation of alternator system may result from poor connection in exciter circuit. A pin type connector linking exciter circuit to alternator regulator may be sprung open on some vehicles. If connector does not fit pin on regulator tightly, squeeze wire connector with pliers to insure good connection (see Illustration).
- SHORT ED ALTERNATOR WIRING - A plastic coated metal clip used to hold wiring harness to alternator may become chafed causing wiring to short on clip. To prevent possible wiring shorts, replace with a nylon clip.
