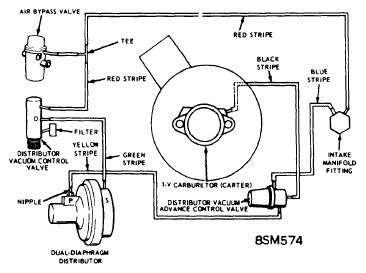

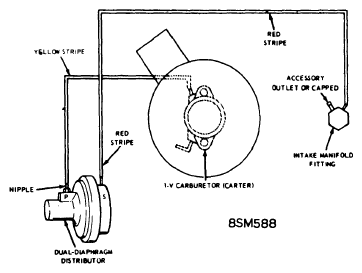

Vacuum Diagrams: Description
Vacuum Control Valves (Temperature Sensing) and Vacuum Advance Control Valves are used on some 1968 and later Ford Motor Co. Engines to control operation of the distributor vacuum advance control unit under special operating conditions such as abnormal temperatures caused by prolonged idling or momentary over-rich mixtures during deceleration. See preceding pages for complete description and testing procedures for these units.
