Cam Indexing

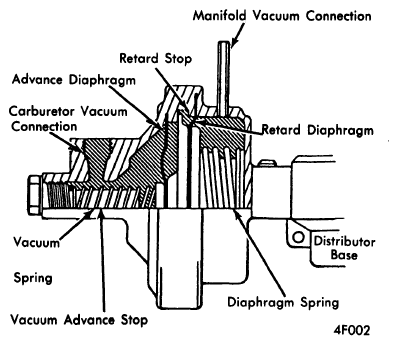

Hypalon covered stop must be installed in correct cam plate control slot (some cams have size of slot in degrees stamped near slot). Measure length of slot used on old cam and use corresponding slot on new cam.
CAUTION:
Maximum advance will be incorrect if wrong slot used.
