Power Window Single Switch
Torino, Montego and Cougar two-door models use two single switches as a master switch instead of the multiple master switch. Tests all single switches with a self powered test light or ohmmeter as follows:

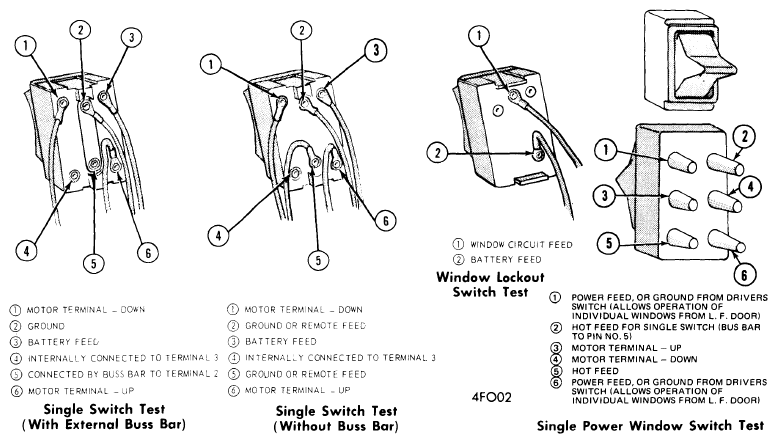

- With switch removed from door and in neutral position, there should be no continuity between terminals 1 & 3, 2 & 5 and 4 & 6 (see illustration).
- With switch toggle pushed downward, there should be continuity between terminals 2, 4 & 5, and 1 & 3. Terminal 6 should be disconnected from all other terminals.
- With switch toggle pushed upward, there should be continuity between terminals 2, 3 & 5, and 4 & 6. Terminal 1 should be disconnected from all other terminals. If switch does not function properly, replace switch.
