Vacuum Amplifier

The vacuum amplifier supplies varying amounts of vacuum to the EGR valve. This provides a finer control of the amount of exhaust gas recirculation during different engine operating conditions.

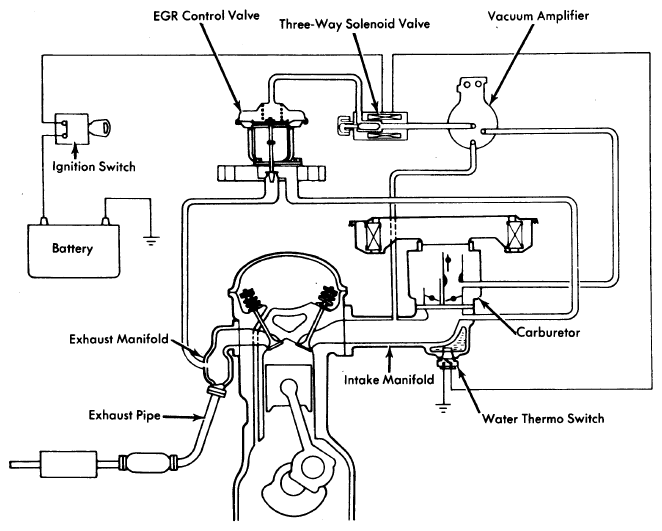

Fig 1: 1976-78 Exhaust Gas Recirculation System
G09313233Courtesy of FORD MOTOR CO.
