All Models

Check continuity between switch terminals as shown in Fig 1 through Fig 8. An ohmmeter must be used to test both systems. To detect marginal operation of the switch, move control knob while each reading is being taken. If switch does not indicate continuity as shown or poor continuity exists during movement, replace switch.

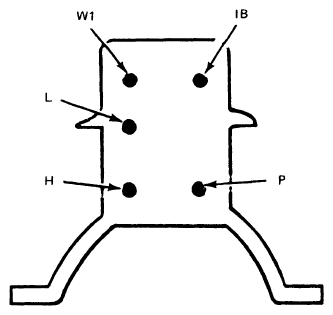

Fig 1: Pin Type Switch Connector Fairmont, Zephyr

Courtesy of FORD MOTOR CO.

Switch Position	Terminal Continuity
Off (Park)	P-L
Low	B-L
High	B-H
Wash	B-W

Fig 2: Pin Type Switch Connector Standard Wipers

Courtesy of FORD MOTOR CO.

Switch Position	Terminal Continuity
Off (Park)	B-C, A-H, F-G
Low	C-D, A-G-H
High	D-E, A-G-H
Wash	W1-W2

Intermittent Wipers

Off (Park)	B-C, A-H, F-G
Low	C-D-F-G, A-H
High	D-E-F-G, A-H
Intermittent	A-H, C-D-F-G
Wash	W1-2

Variable resistance between F and G: Minimum of between 100-900 ohms, to a maximum of 5, 600-8, 400 ohms.

Fig 3: Blade Type (Slide Switch) Connector Standard Wipers

Courtesy of FORD MOTOR CO.

Switch Position	Terminal Continuity
Off (Park)	1-5, 3-7
Low	1-4, 2-7
High	1-4, 2-6
Wash	W1-W2

Variable resistance between F and G Minimum of between 100-900 ohms, to a maximum of 8, 000-13, 000 ohms.

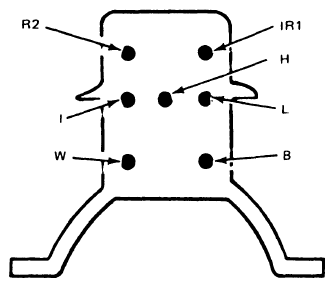

Fig 4: Pin Type Interval Switch Connector Fairmont, Zephyr

Courtesy of FORD MOTOR CO.

Switch Position	Terminal Continuity
Ford Zephyr Interval Wiper Off (Park)	B-H
Low	B-L
High	B-H-L
Intermittent	B-l
Wash	B-W

Variable resistance between R-1 and R-2: Minimum 300 ohms, Maximum 15, 000 ohms. Fairmont and Zephyr only.

Fig 5: Blade Type Switch Connector Standard Wipers

Courtesy of FORD MOTOR CO.

Switch Position	Terminal Continuity
Off (Park)	C-D, A-B
Low	A-B-C
High	A-B-E
Wash	W1-W2

Intermittent Wipers

Off (Park)	A-B, D-E
Low	A-B, D-E-F
High	D-E-F, A-B-C
Intermittent	E-F, A-B
Wash	W1-W2

Variable resistance between D and E: Minimum of between 480-720 ohms, to a maximum of 5, 600-8, 400 ohms.

Fig 6: Blade Type (Slide Switch) Connector Intermittent Wipers

Courtesy of FORD MOTOR CO.

Switch Position	Terminal Continuity
Off (Park)	28-58
Low	58-63
High	63-56
Wash	941-950

Variable resistance between F and G Minimum of between 100-900 ohms, to a maximum of 8, 000-13, 000 ohms.

Fig 7: Pin Type Connector Standard Wipers (Column Mounted Switch)

Courtesy of FORD MOTOR CO.

Switch Position	Terminal Continuity
Off (Park)	58-63, 28-63
Intermittent	58-63
Low	58-63, 28-57
High	63-56, 28-57
Wash	941-950

Fig 8: Pin Type Connector Intermittent Wipers (Column Mounted Switch)

Courtesy of FORD MOTOR CO.

Switch Position	Terminal Continuity
Off (Park)	A-E
Intermittent	B-E-F
Low	B-E-F-C
High	D-B-F-C
Wash	W1-W2

Variable resistance between 63 and 57 (switch off): Between 1, 500 to 3, 000 ohms minimum and 28, 000 to 42, 000 ohms maximum.
