Solenoid Removed From Starter: Notes

With armature disconnected from overrunning clutch shift lever, armature must move freely in and out of solenoid. If corroded, clean thoroughly before proceeding with tests.

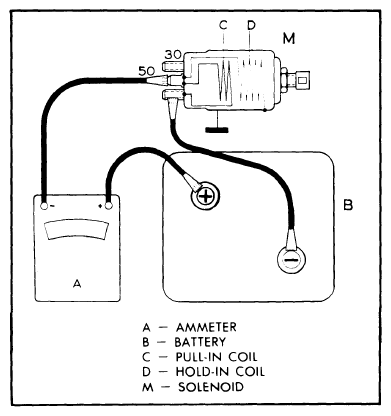

Fig 1: Typical Jumper Connections for Pull-In Test
G09334250Courtesy of NOT AVAILABLE
