Air By-Pass Valve

Disconnect air hose from side of air by-pass hose. Start engine and raise speed above 2000 RPM. Release throttle; air flow should be noticed from valve connection, if by-pass valve is operating properly.

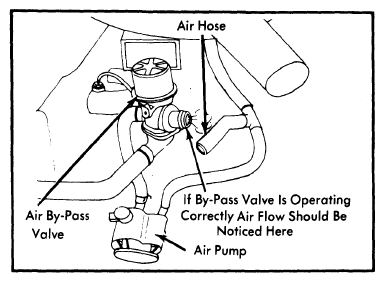

Fig 1: Testing Air By-Pass Valve
G09324418Courtesy of FORD MOTOR CO.
