EGR Load Control (Wot) Valve

Controls and closes EGR valve when engine requires maximum power at or near wide open throttle (WOT). Senses venturi vacuum at a predetermined level and causes valve to close or to open when engine load is reduced from WOT.

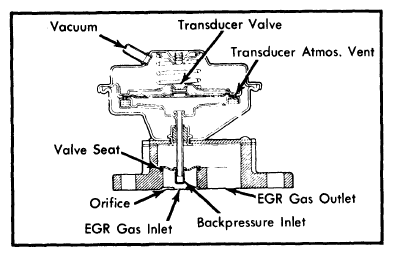

Fig 1: Integral Backpressure Transducer Type EGR Valve
G09343099Courtesy of FORD MOTOR CO.

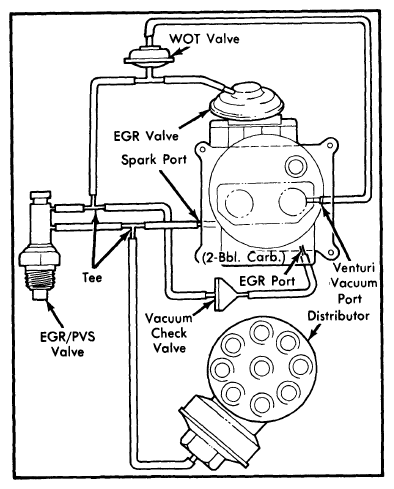

Fig 2: Typical EGR Installation with Vacuum Load Control (WOT) Valve
G09343100Courtesy of FORD MOTOR CO.
