MOTORCRAFT DURA-Spark II Ignition Systems: Overhaul: Reassembly

Reverse disassembly procedure, but use new roll pin and install roll pin in different groove, 180° from original groove.

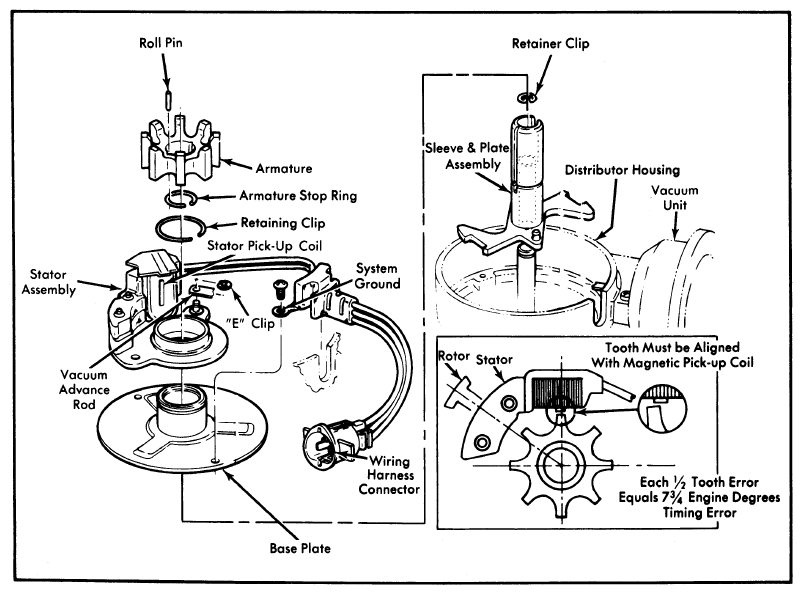

Fig 1: Components of Dura-Spark II Distributor

Courtesy of FORD MOTOR CO.
