Accelerator Switch

The accelerator switch is actuated by a throttle lever link on carburetor. When checking the switch with a test lamp, the test light should be "ON" when accelerator pedal is fully released and "OFF" when pedal is depressed.

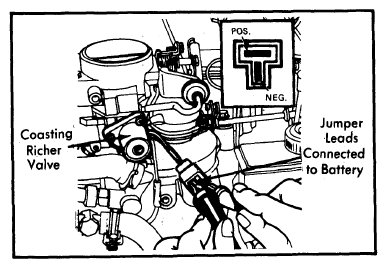

Fig 1: Testing Coasting Richer Valve

Courtesy of FORD MOTOR CO.
