Air By-Pass Valve

Disconnect air hose from side of air by-pass valve. Start engine and raise speed above 2000 RPM. Release throttle. Air should flow from valve connection if by-pass valve is operating properly.

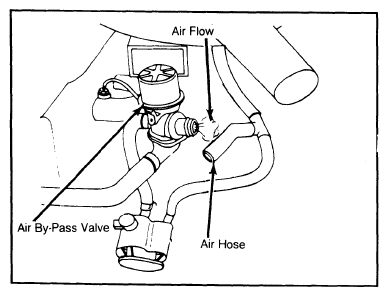

Fig 1: Testing Air By-Pass Valve
G09315607Courtesy of FORD MOTOR CO.

Air flow indicates correct by-pass valve operation.
