Relief Valve

Integral with the air pump, this valve will protect the pump and system against pressure build-up by automatically opening to bleed off excess pressure.

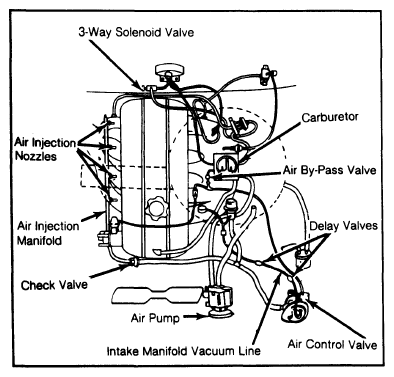

Fig 1: Air Pump Type Air Infection System Used on 2.0L California Engines

Courtesy of FORD MOTOR CO.

Uses 4 injection nozzles and air injection manifold.
