Fig. 8 Calib. Code 1-04S-R0 Calif. W/ A/C
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

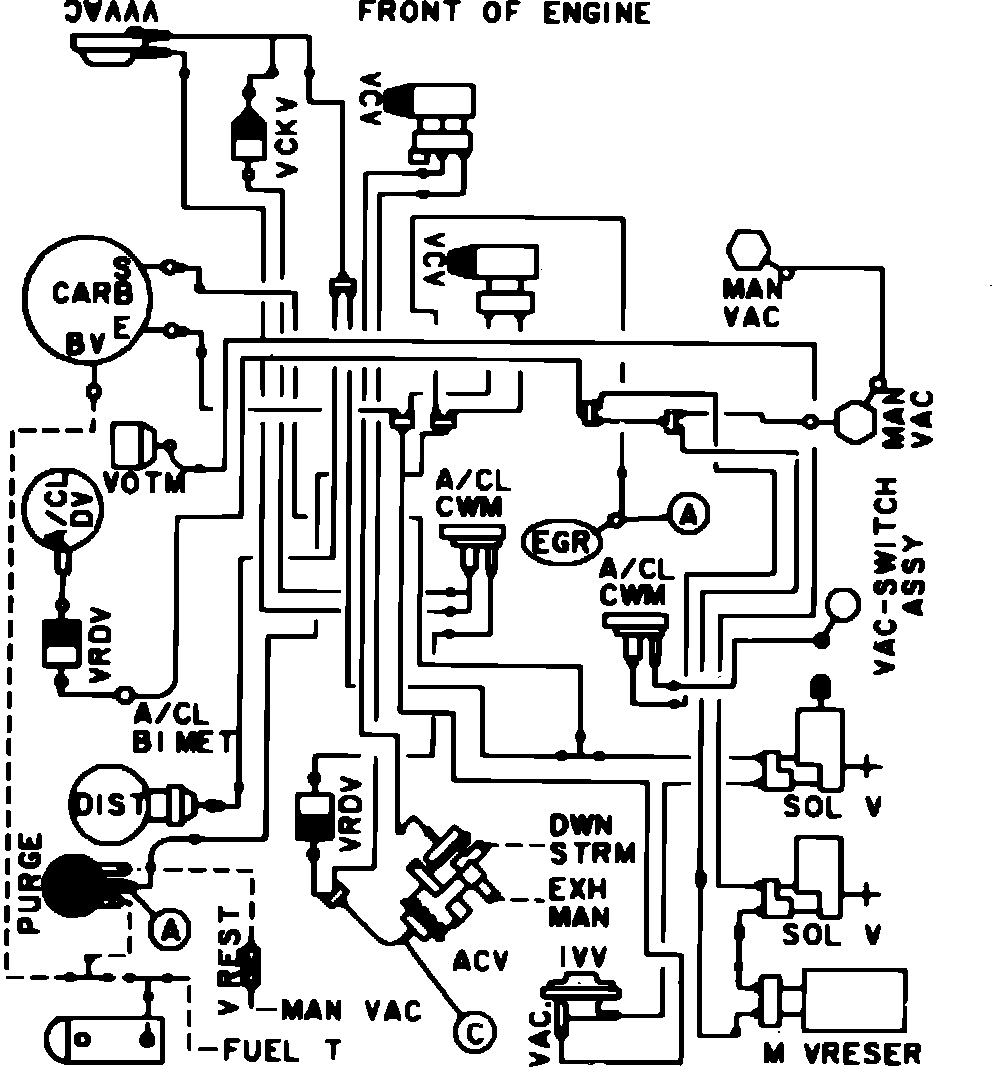

Fig. 8 Calib. Code 1-04S-R0 Calif. W/ A/C
Vacuum hose routing.:
