A/T Torque Data

ATX 3-spd A/T, Transaxle Torque:

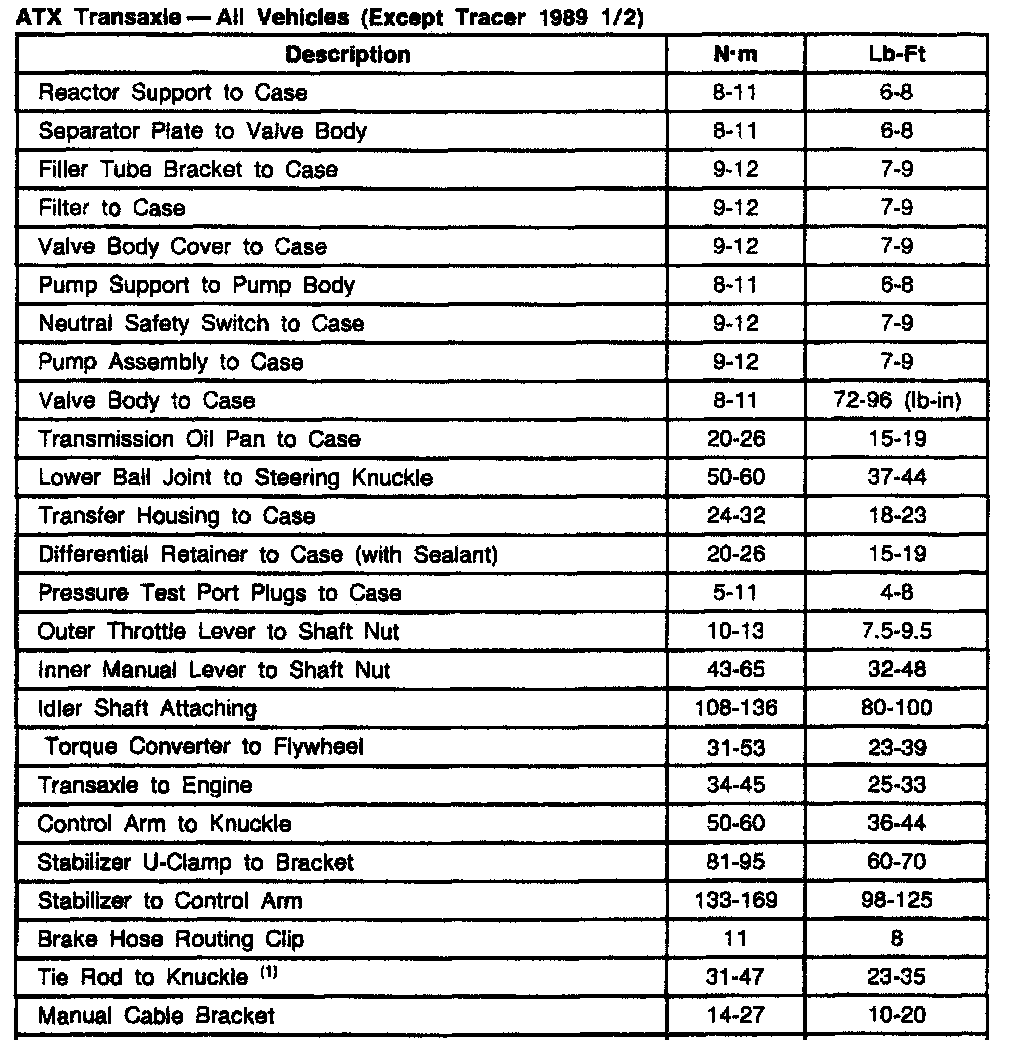

ATX 3-spd A/T, (All Vehicles):

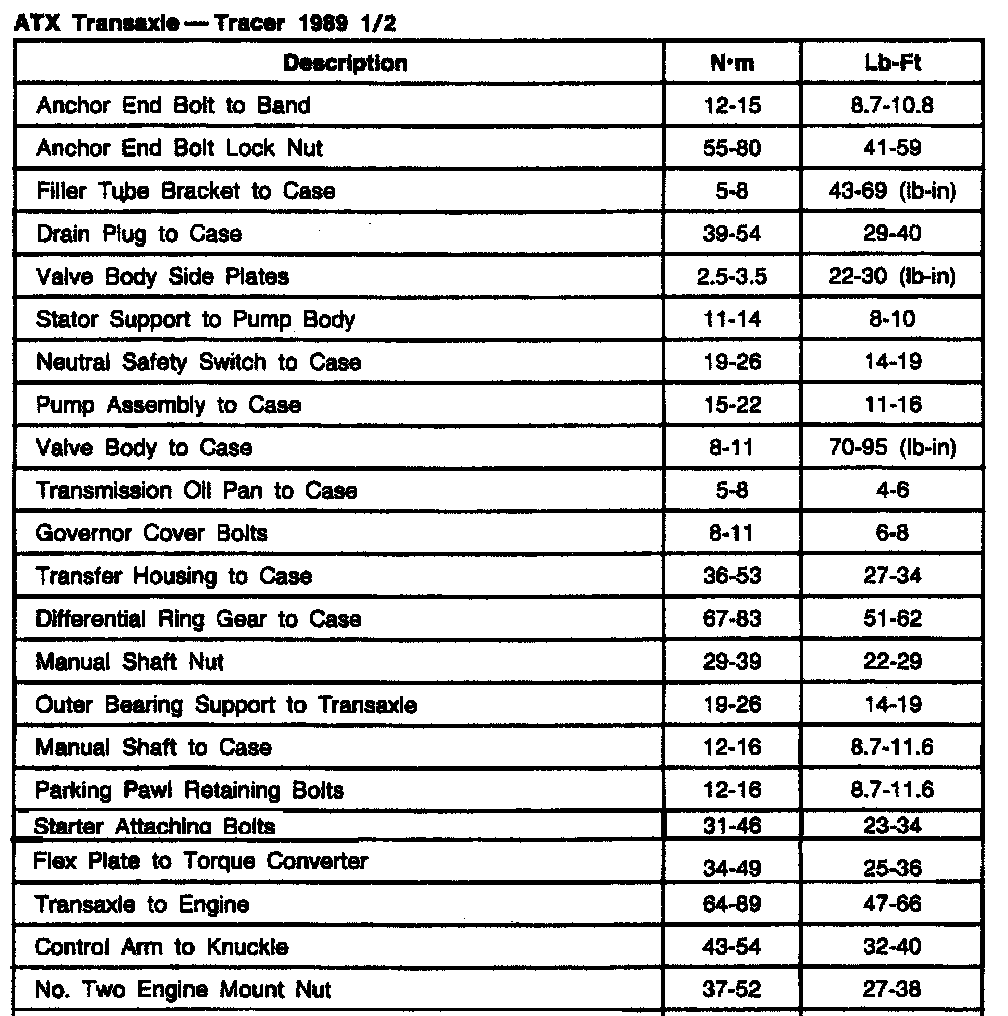

ATX 3-spd A/T, (Tracer):





ATX 3-spd A/T, (Tempo/Topaz, Escort):





ATX 3-spd A/T, Cooler Line Fittings:
