Starters - MOTORCRAFT: Testing: Notes
NOTE:

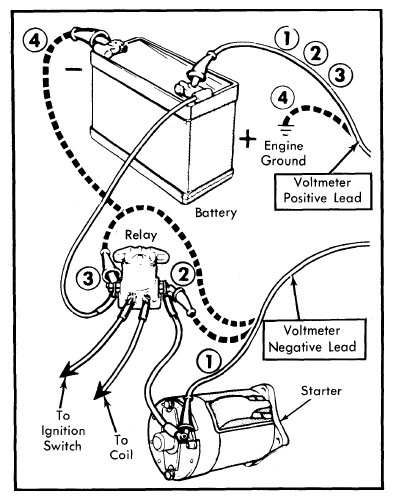

Before performing tests, clean and connect battery cables. Be sure battery is fully charged. Remove coil high tension wire from distributor and ground it. Place transmission in neutral or park and apply parking brake. When making voltmeter connections, be sure to connect leads to battery posts or threaded terminals and not just to cable ends. See Figure for Voltage Drop Test connections.
