Float Level

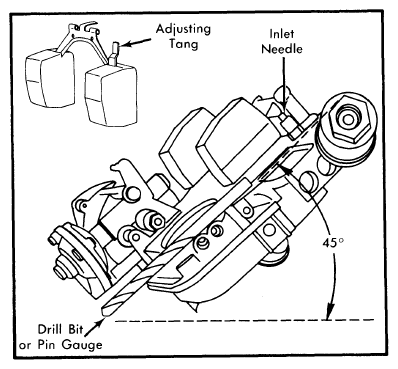

- Hold air horn upside down at 45° angle with air horn gasket in place. Float tang should rest lightly on inlet needle. Using suitable drill bit or pin gauge, measure clearance between float toe and air horn casting. See Figure.
- To adjust, remove float assembly and bend float level adjusting tang. Do not damage or scratch float tang during adjustment.
