Key Buzzer Always On

Short circuit to ground between key and door switch. Inoperative door switch.

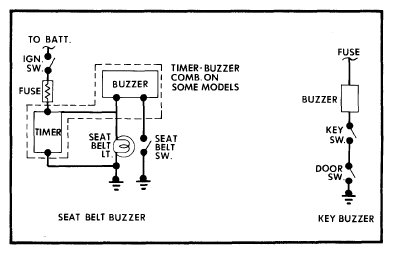

Fig 1: Ford Motor Co. Key And Seat Belt Warning System

Courtesy of NOT AVAILABLE

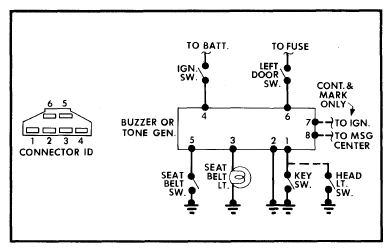

Fig 2: General Motors Key And Seat Belt Warning System

Courtesy of NOT AVAILABLE
