Cruise Control: Diagrams

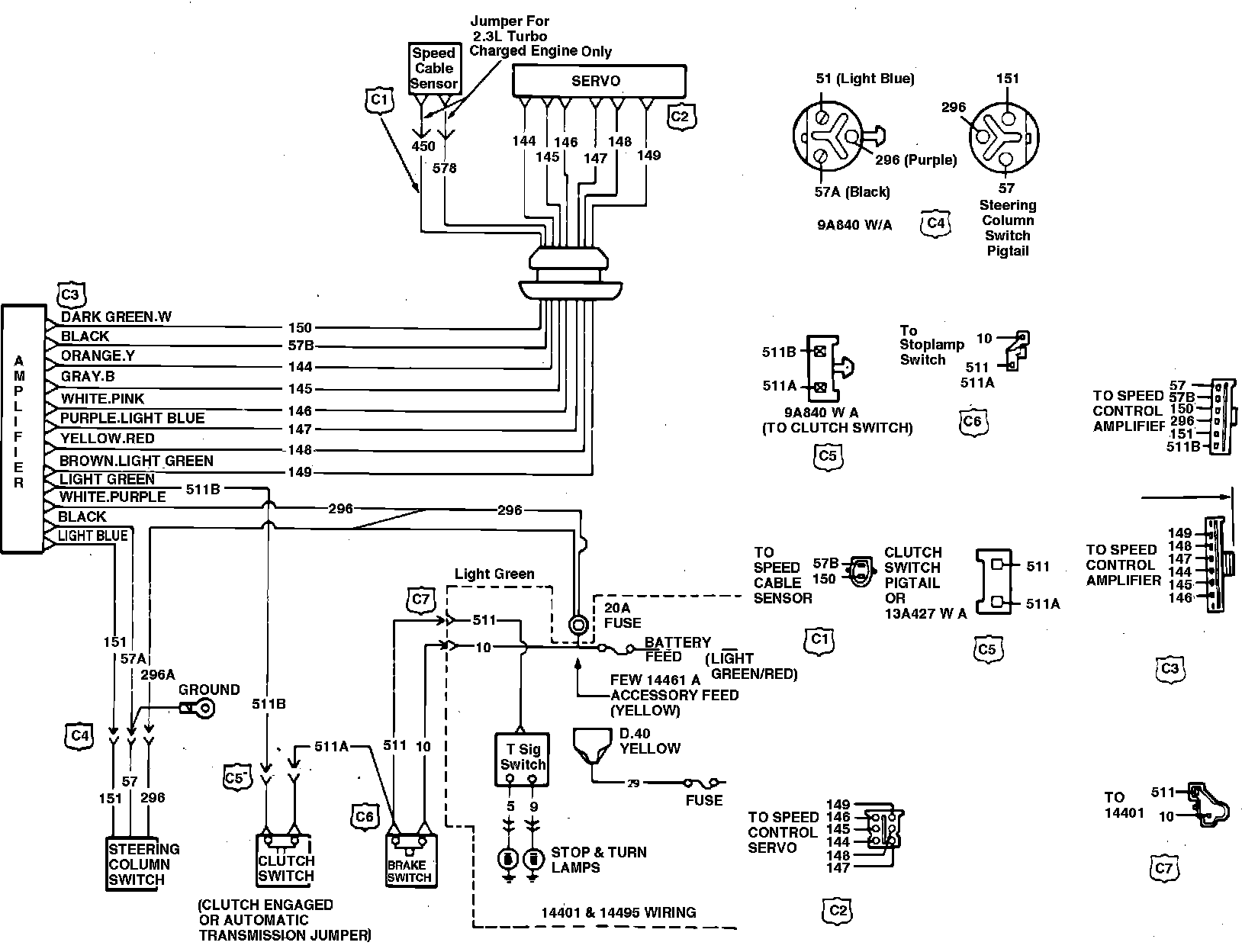

Fig. 1 Speed control wiring schematic (typical). 1982---83 Fairmont & Zephyr, 1982---87 Mustang & Capri; 1982 Granada; 1982---83 Cougar; 1983---86 LTD & Marquis:

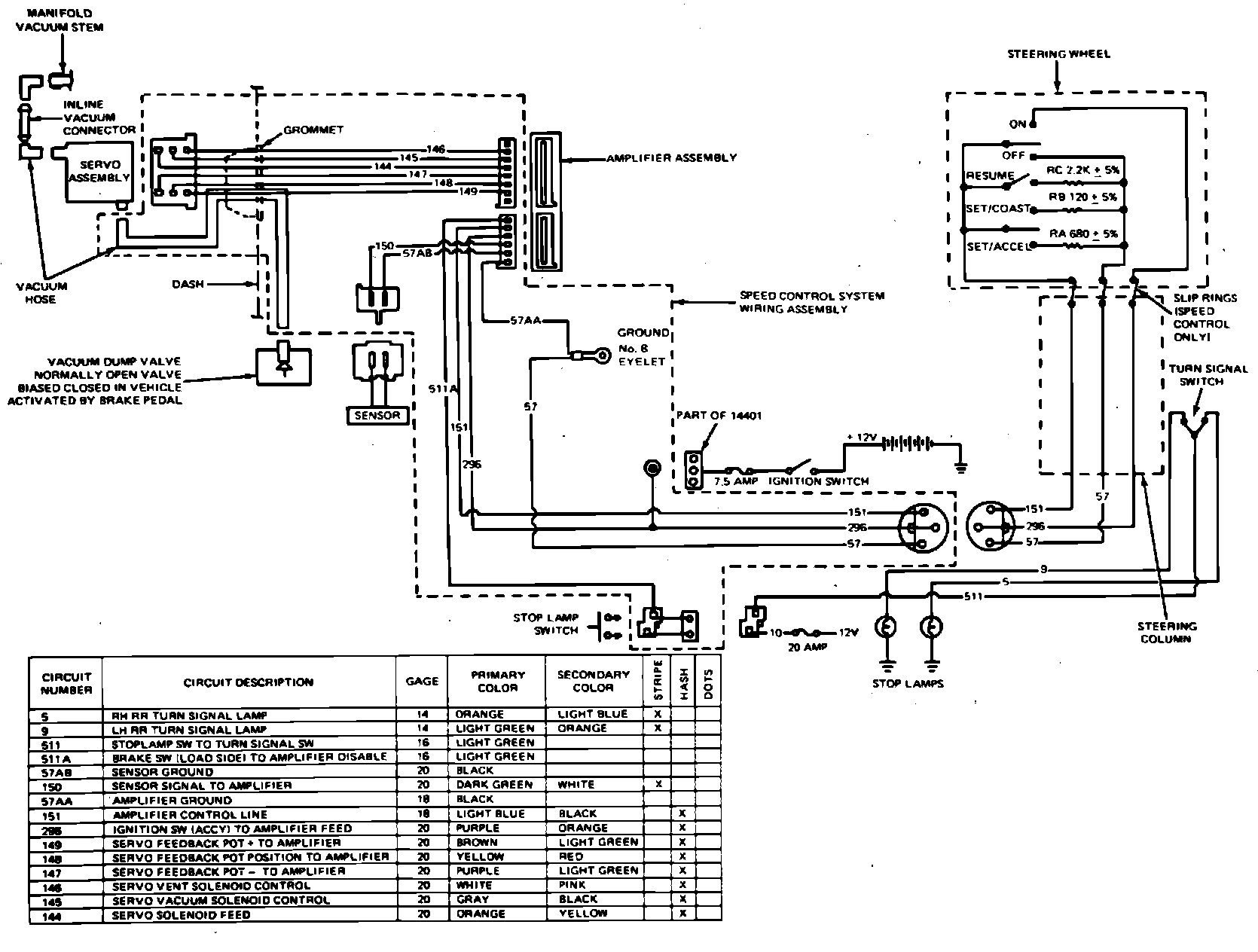

Fig. 4 Speed control wiring schematic (typical). 1982---85 Ford & Mercury, 1982---83 Continental Mark VI & 1982---87 Lincoln Town Car:
