A/T Torque Data

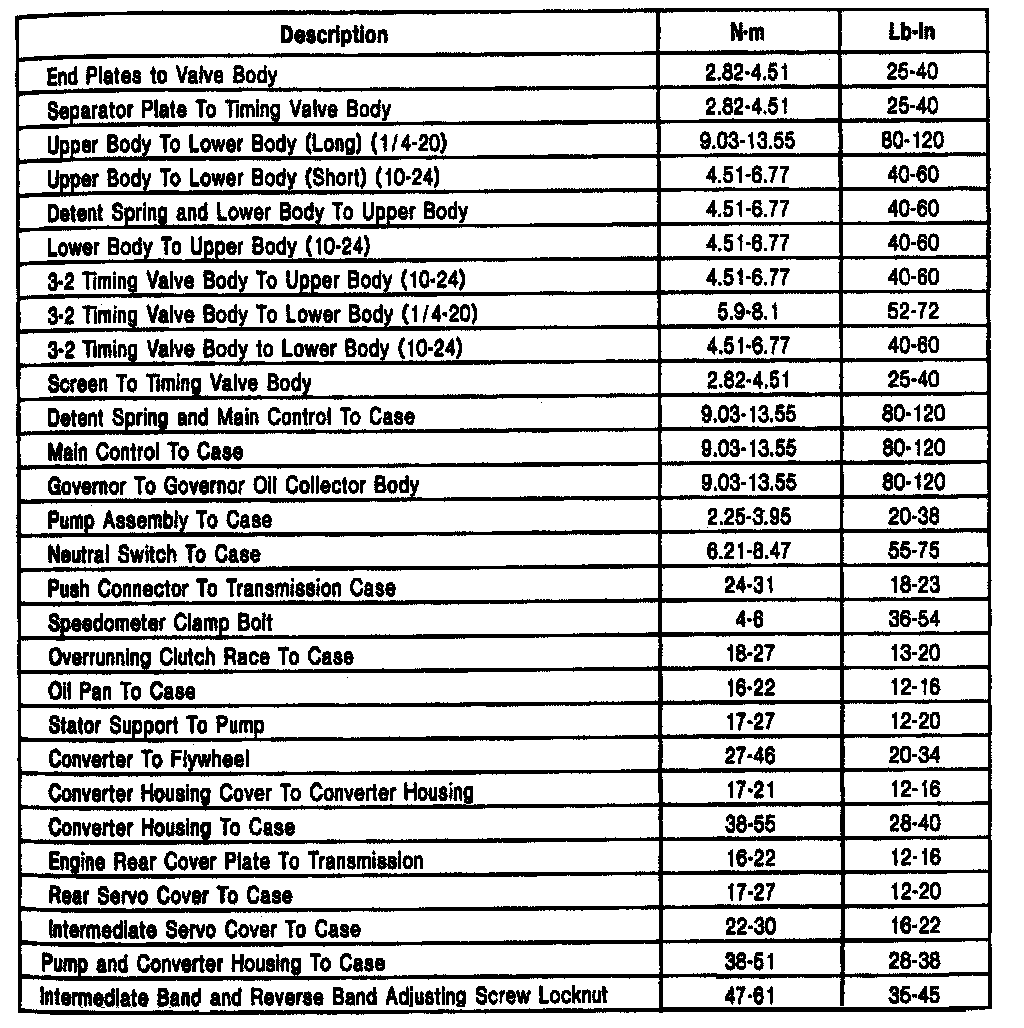

C-5 3-spd A/T, Transmission Assembly:

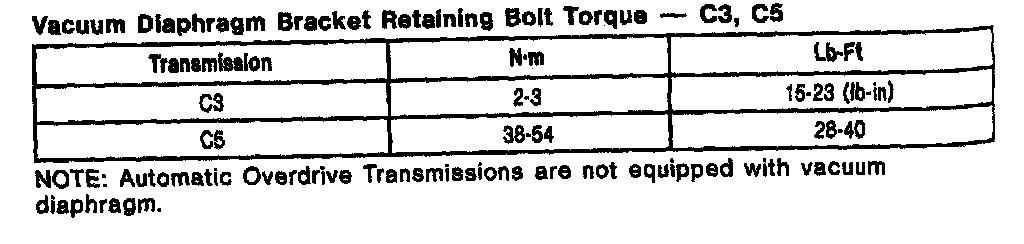

C-5 3-spd A/T, Vacuum Diaphragm Bracket:

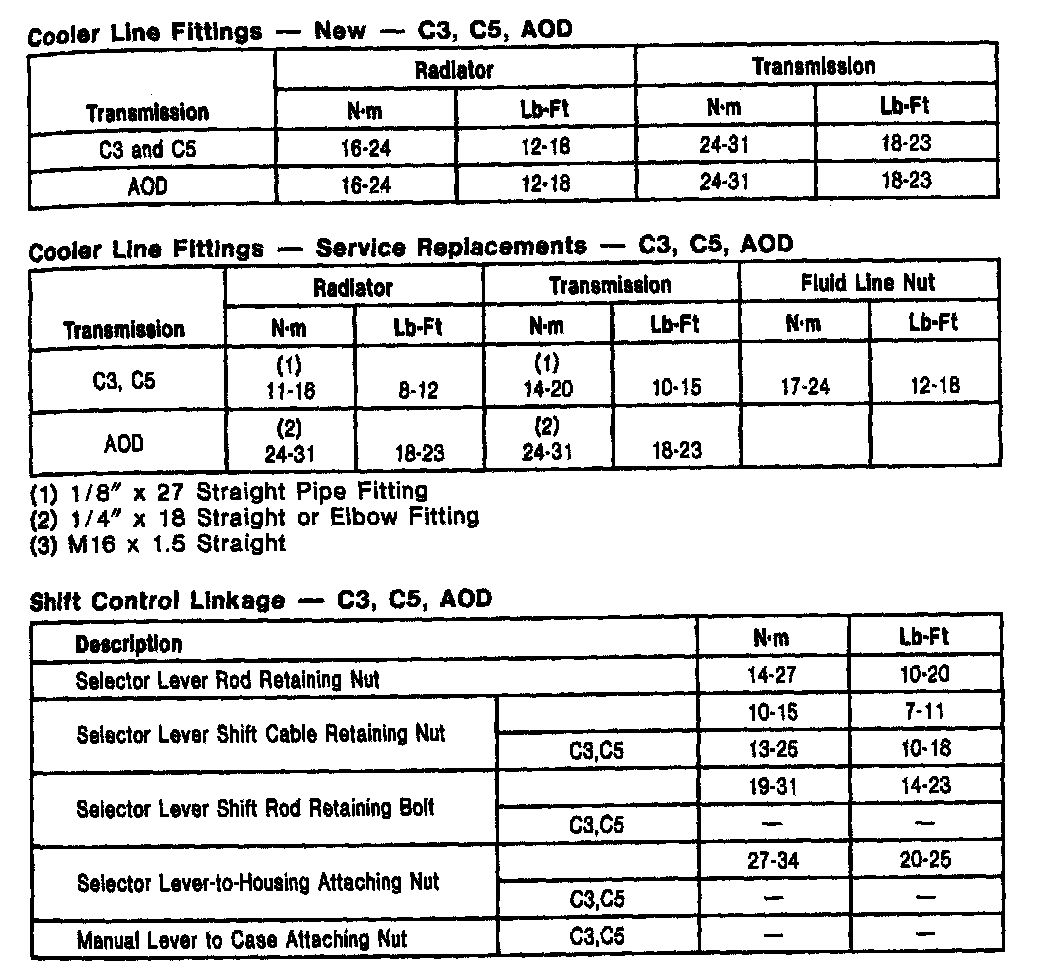

C-5 3-spd A/T, Cooler Fittings/Control Linkage:
