Cruise Control Switch: Diagrams

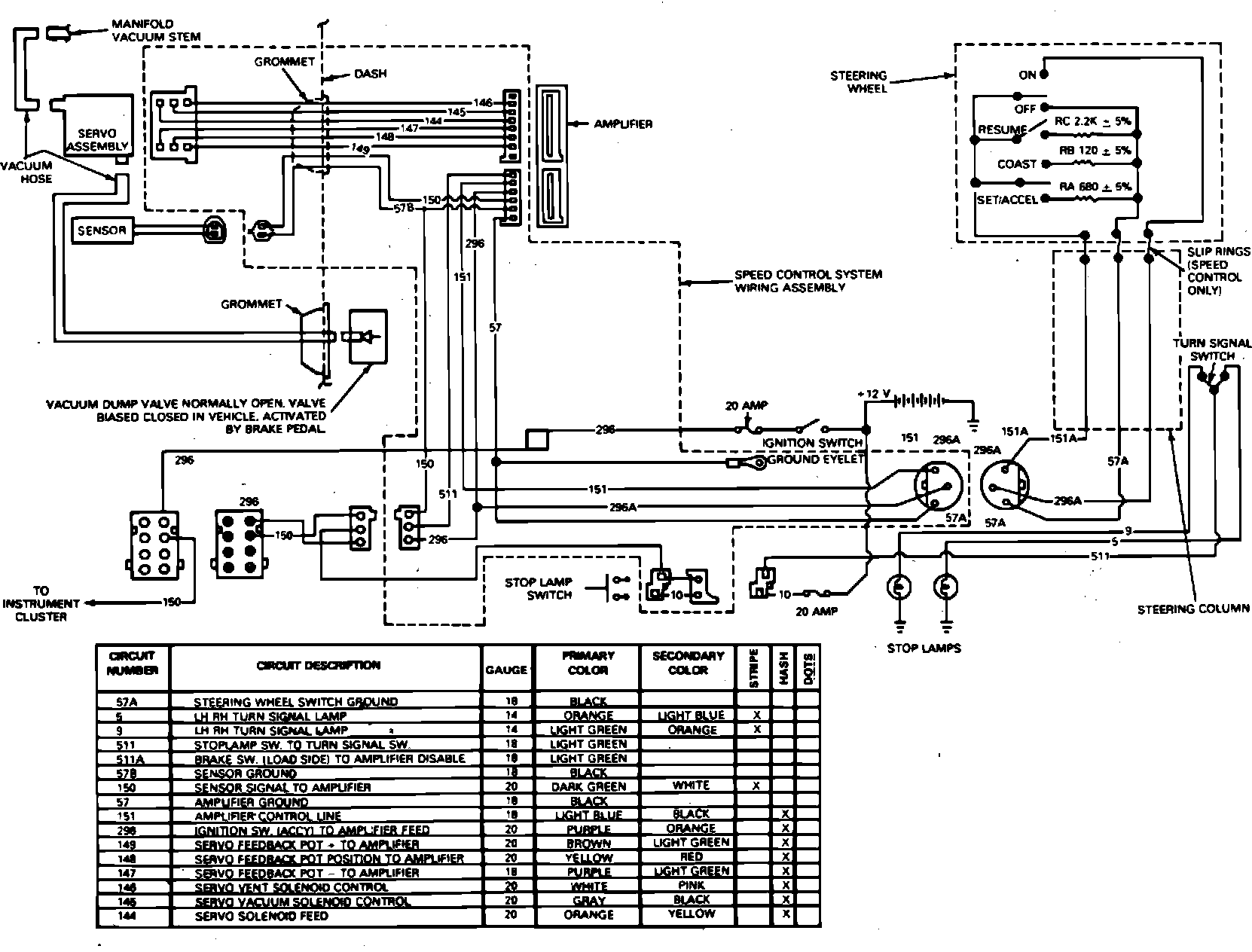

Fig. 2 Speed control wiring schematic (typical). 1982---86 Thunderbird, Cougar & XR-7:

Fig. 4 Speed control wiring schematic (typical). 1982---85 Ford & Mercury, 1982---83 Continental Mark VI & 1982---87 Lincoln Town Car:
