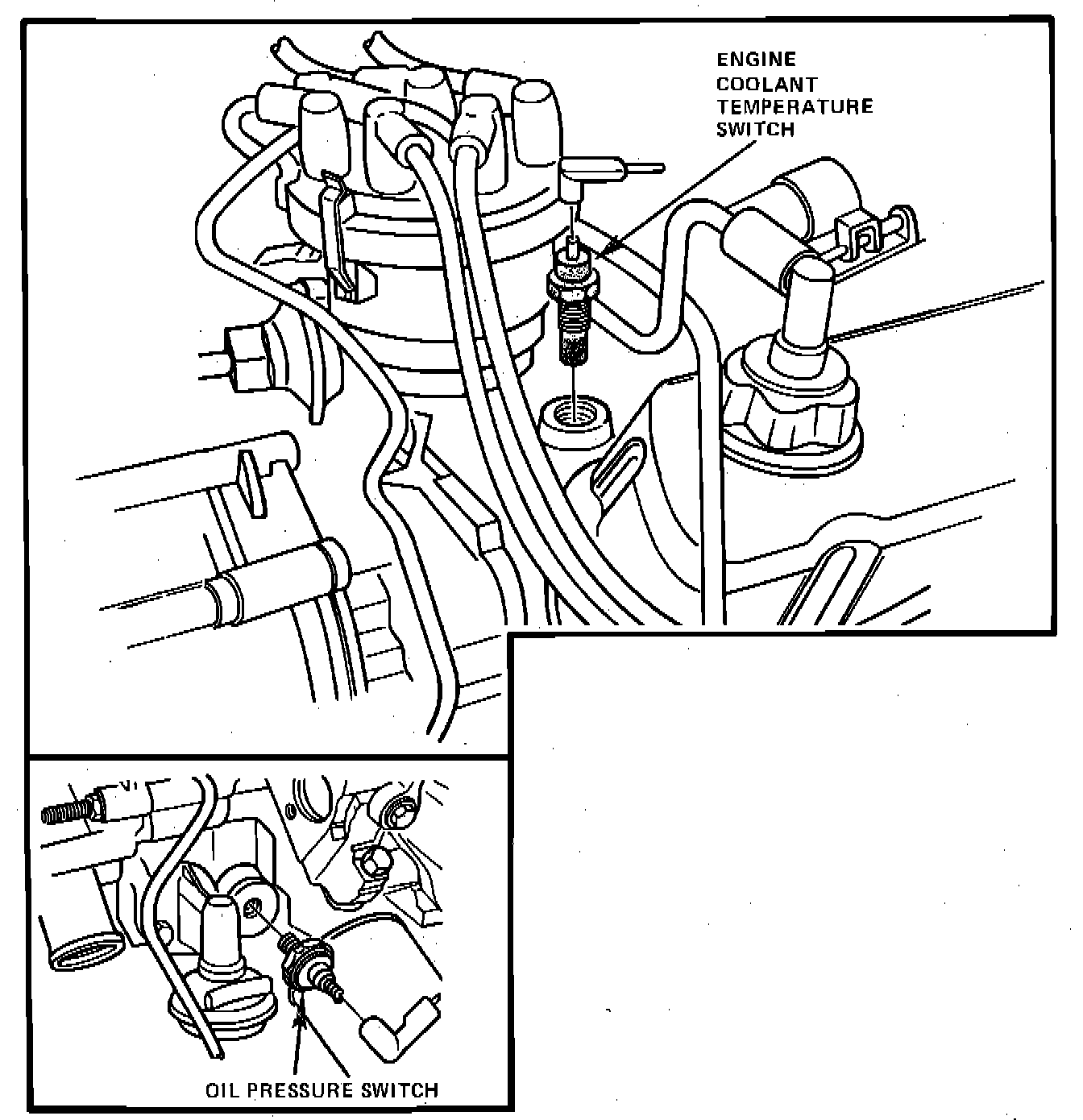

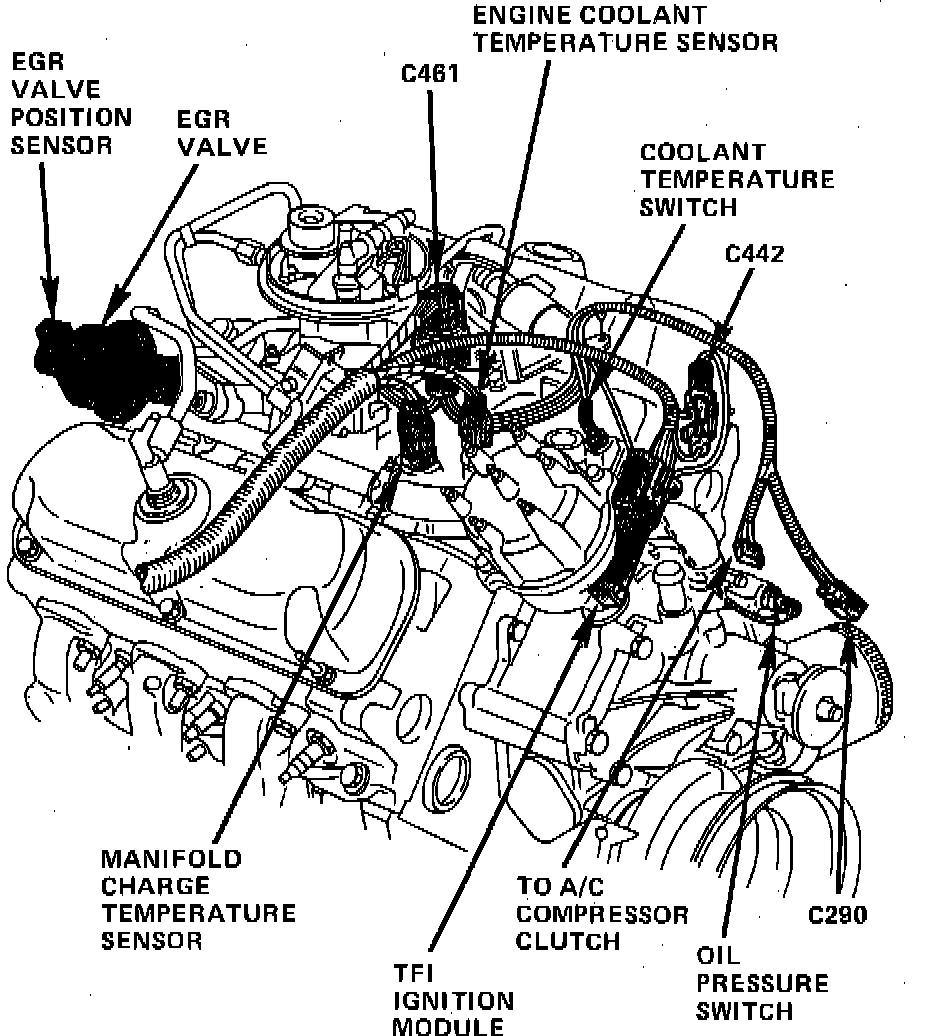

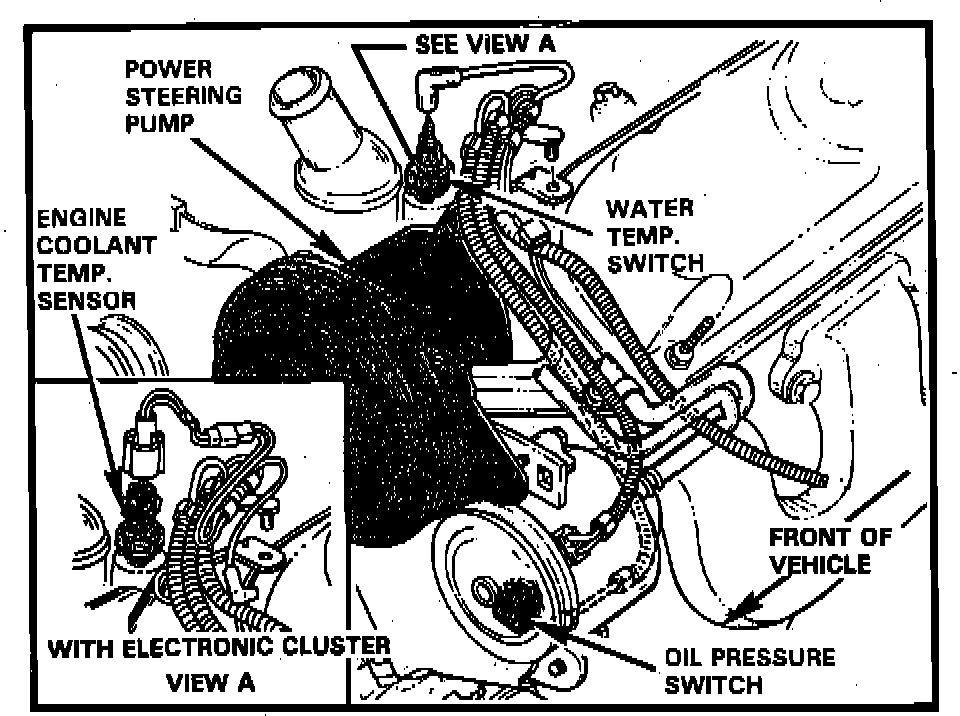

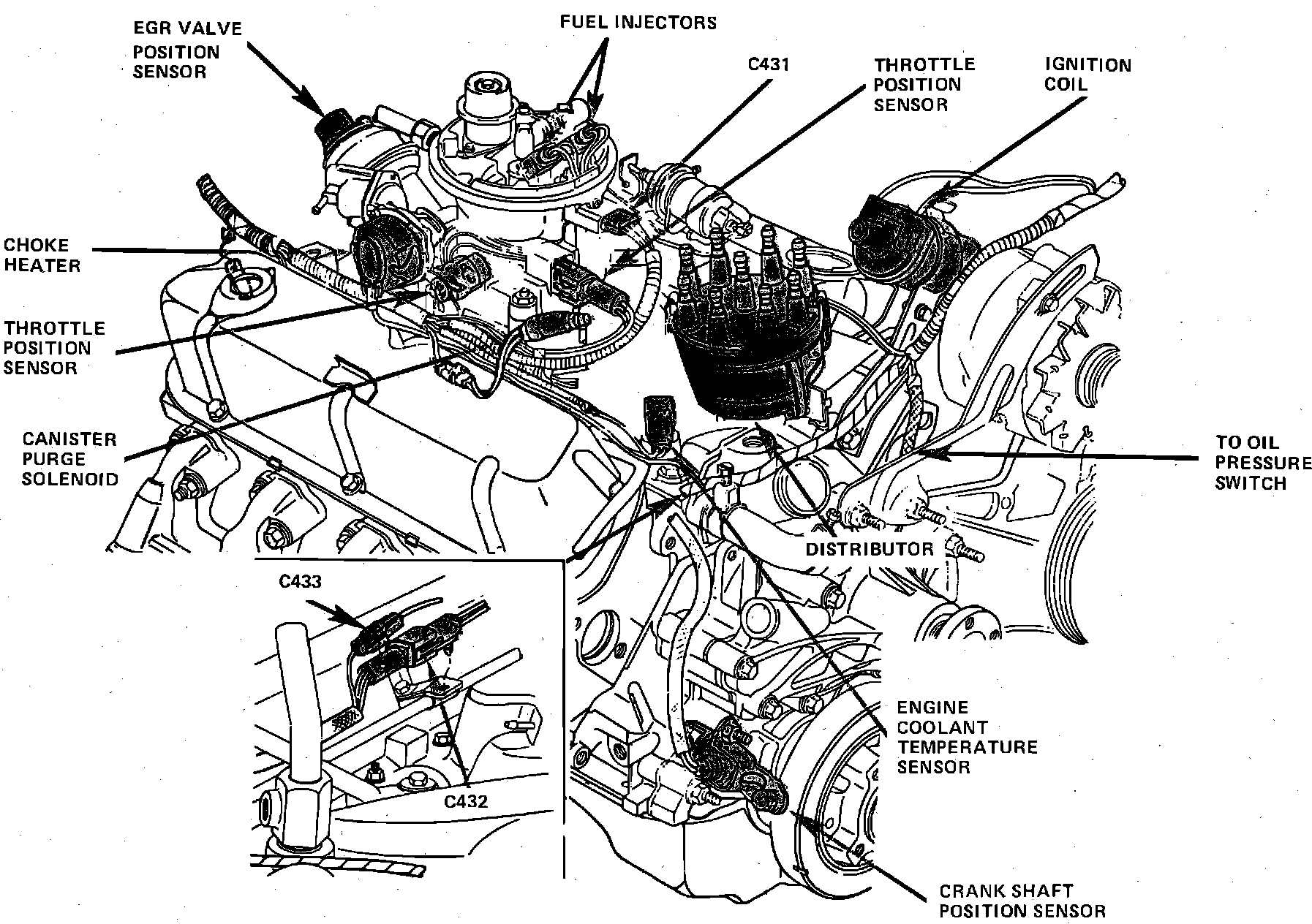

Coolant Temperature Sensor/Switch (For Computer): Locations

RH Side Of Engine.:

Top Of Engine On RH Side Of Distributor

Applicable to: 1983 V8-302/5.0L Engine

RH Side Of Engine.:

Top Of Engine On RH Side Of Distributor

Applicable to: 1984 V6-232/3.8L Engine

Front Of Engine.:

Top Of Engine On RH Side Of Distributor

Applicable to: 1984-85 V8-302/5.0L Engine

Front Of Engine.:

Top Of Engine On RH Side Of Distributor

Applicable to: 1985 Models With A/C

Top RH Front Of Engine.:

Top Of Engine On RH Side Of Distributor

Applicable to: 1985 V8-302/5.0L Engine
