Service Point Locations

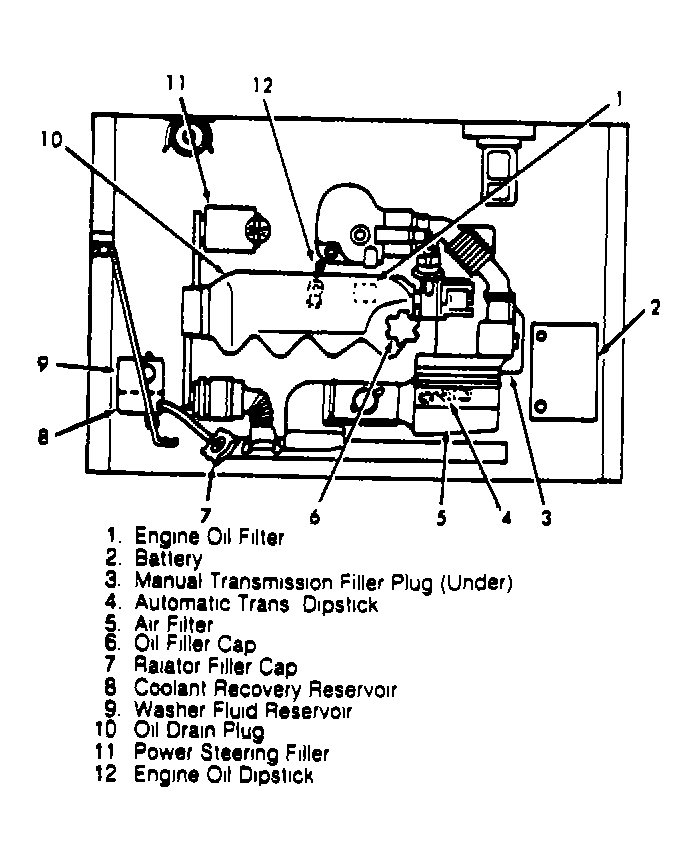

Fig 1: Service Point Locations (Typical 1.6L Engine)
Courtesy of FORD MOTOR CO.

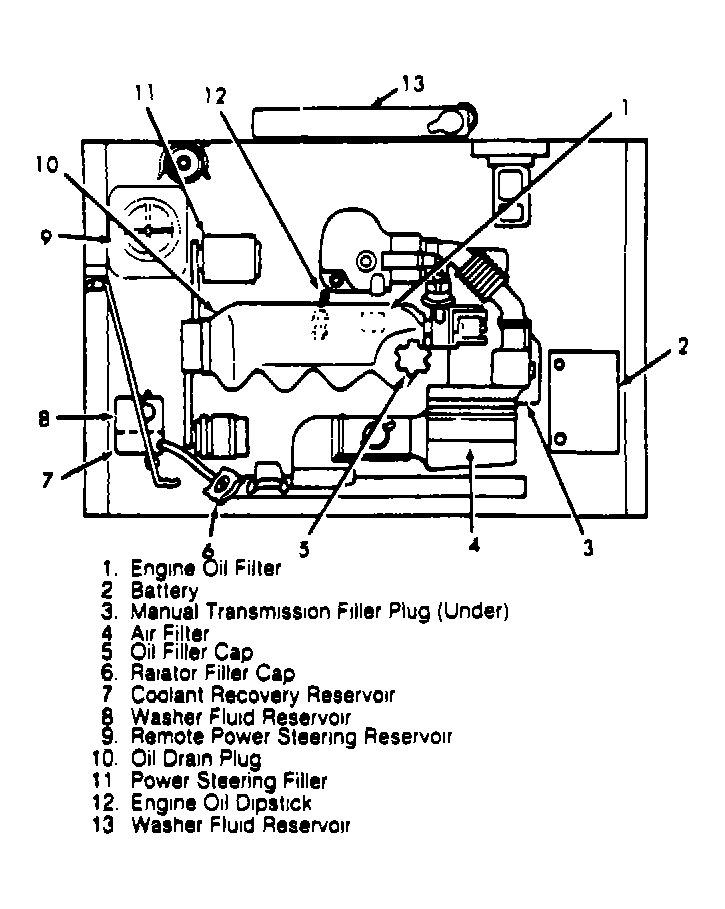

Fig 2: Service Point Locations (1.9L Engine)
Courtesy of FORD MOTOR CO.

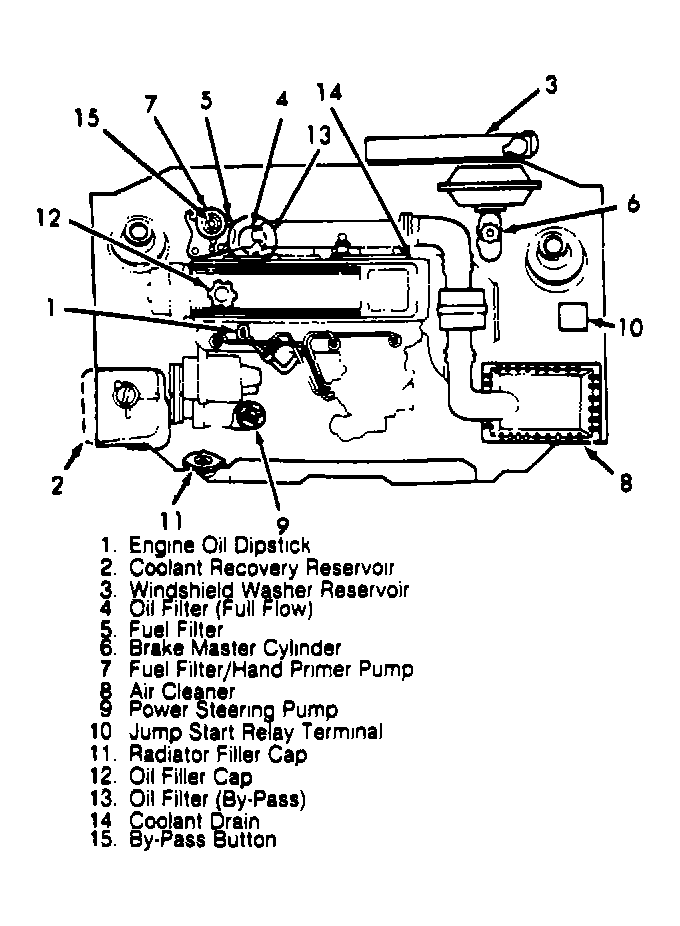

Fig 3: Service Point Locations (2.0L Diesel Engine)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
