Front Wheels

Once wheels are lined up straight ahead, lock steering wheel in place using steering wheel holder. Adjust left and right tie rods until each wheel has 1/2 of the desired total toe specification. Tighten jam nut to specifications and be sure boot on tie rod is not twisted.

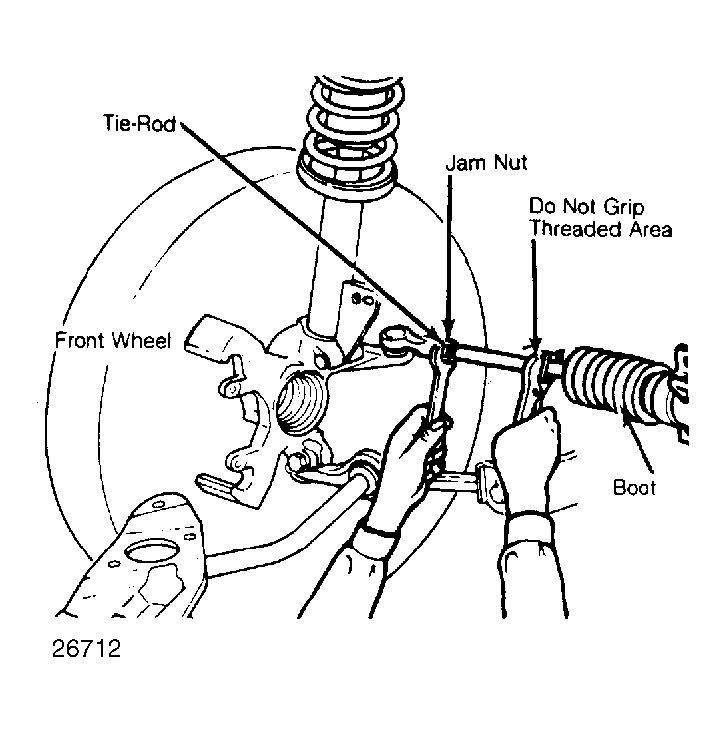

Fig 1: Toe-In Adjustment on Front Wheel Drive Vehicles
G26712
