Ignition System - DURA-Spark II: Overhaul: Reassembly

Reverse disassembly procedure. Using new roll pin, install roll pin in different groove, 180° from original groove.

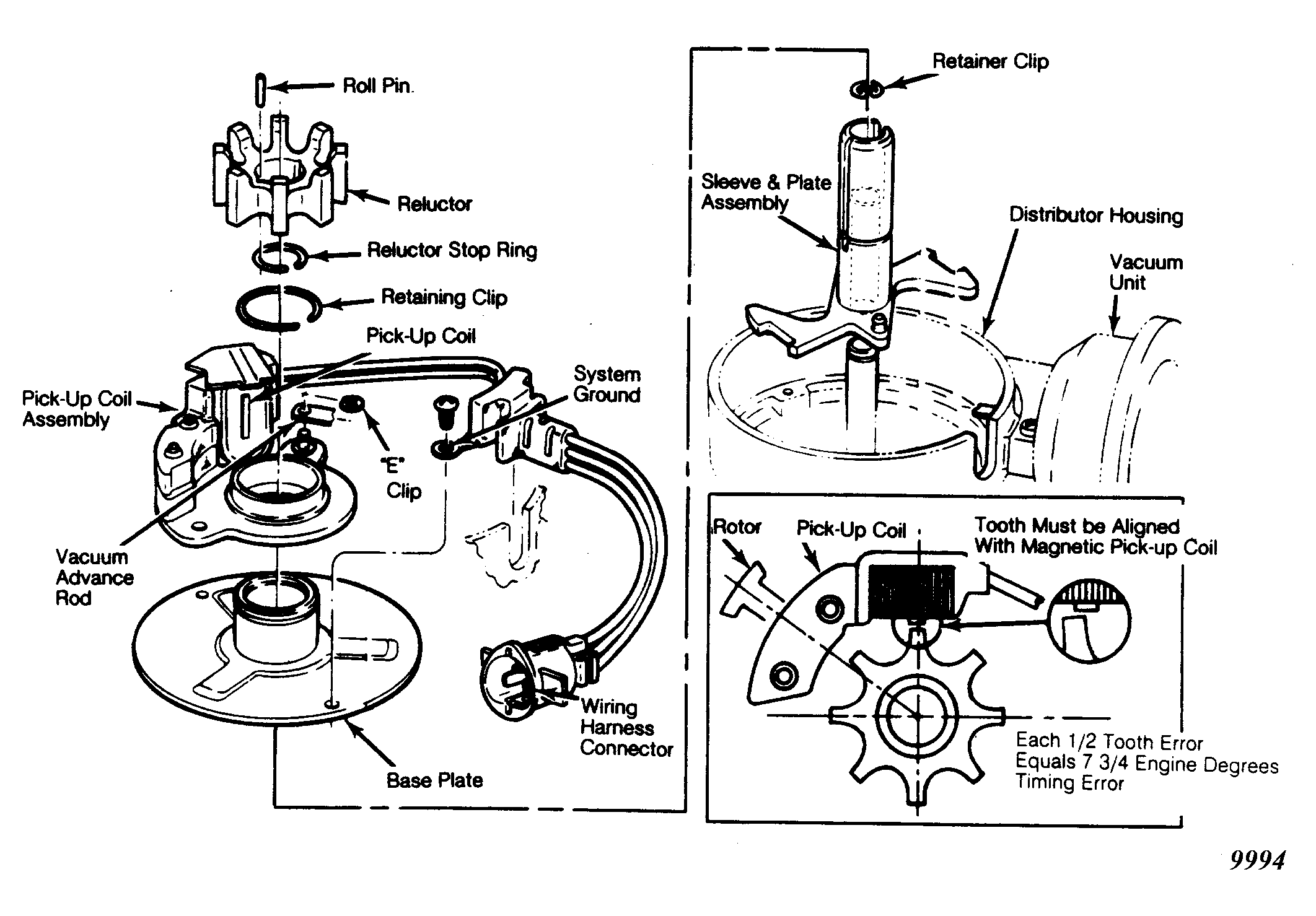

Fig 1: Components of Dura-Spark II Distributor Reluctor shown, having 8 teeth, is for V8 engine.
