Ignition Spark Tester

Either use an ignition spark tester, or modify a spark plug for use in testing ignition system. To modify plug, cut off side terminal, and install spring clip for grounding plug housing. See Fig 1.

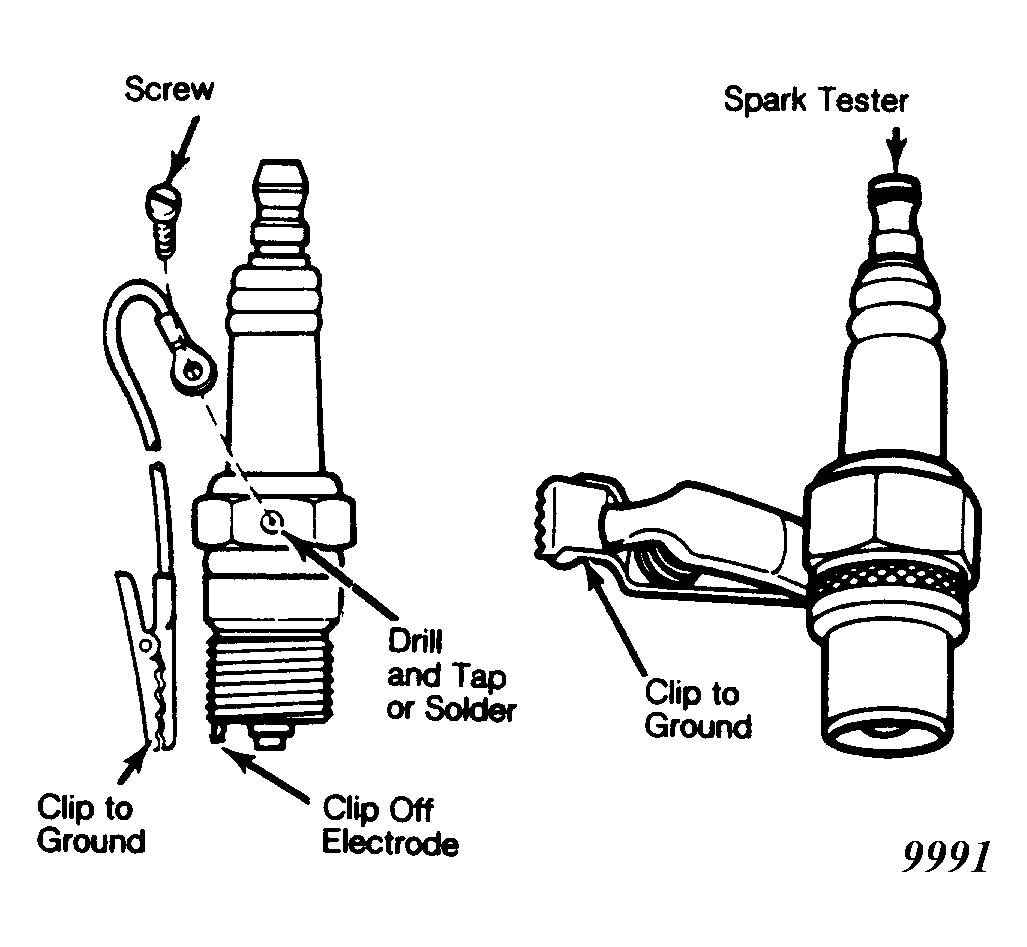

Fig 1: Modified Spark Plug and Spark Tester Testers may be purchased from most tool suppliers.
G9991
