Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|

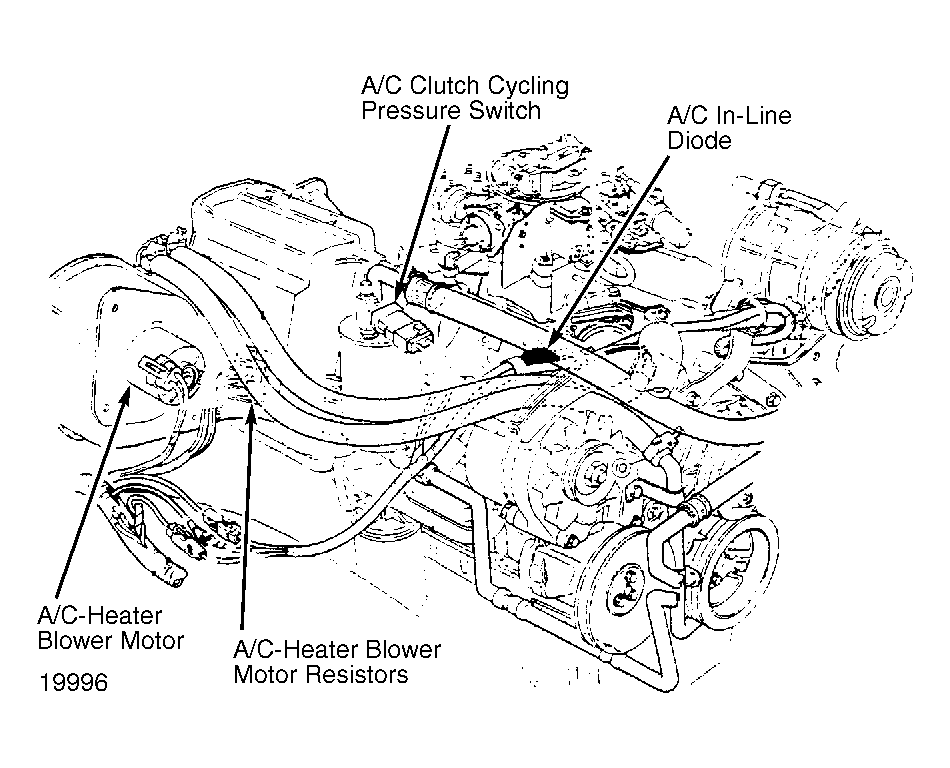

| A/C-Heater Blower Motor Resistors | On right side of firewall, near blower motor. See Figure. | |

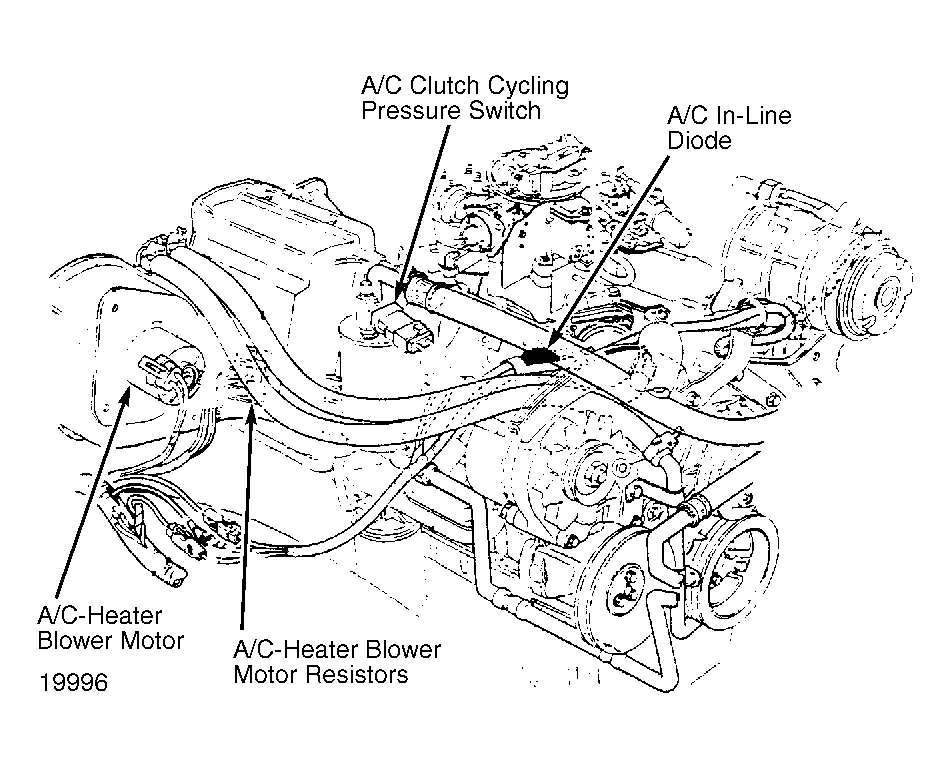

| A/C In-Line Diode | In engine wiring harness, behind alternator. See Figure. | |
| Cruise Control Amplifier | Under instrument panel, right of steering column. | |
| Cruise Control Servo | In engine bay, on left fender apron. | |

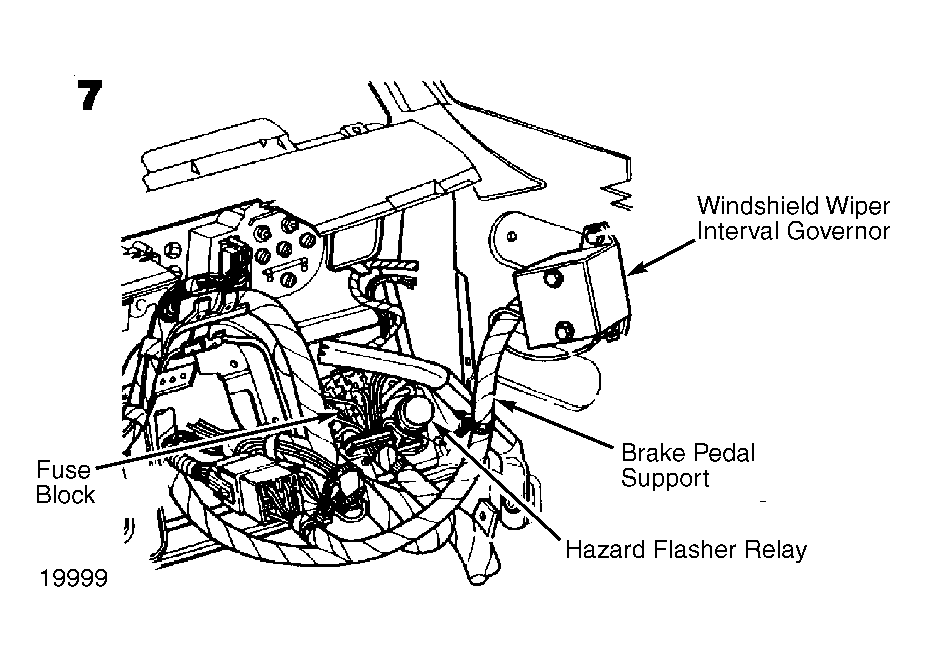

| Fuse Block | Under instrument panel, left of steering column. See Figure. | |
| Fusible Links | ||
| A, B, C, L & W | On right fender apron, at starter relay. | |
| D & E | On left fender apron, near voltage regulator. | |
| Hazard Flasher | On rear of fuse block. See Figure. | |
| In-Line Diode | In cab roof, near dome light. | |
| Radio Choke | On rear of radio. | |
| Turn Signal Flasher | On front of fuse block. | |
| Windshield Wiper Interval Governor | Under instrument panel, above parking brake. See Figure. | |
