Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor | In engine bay, on right side of firewall. See Figure. |

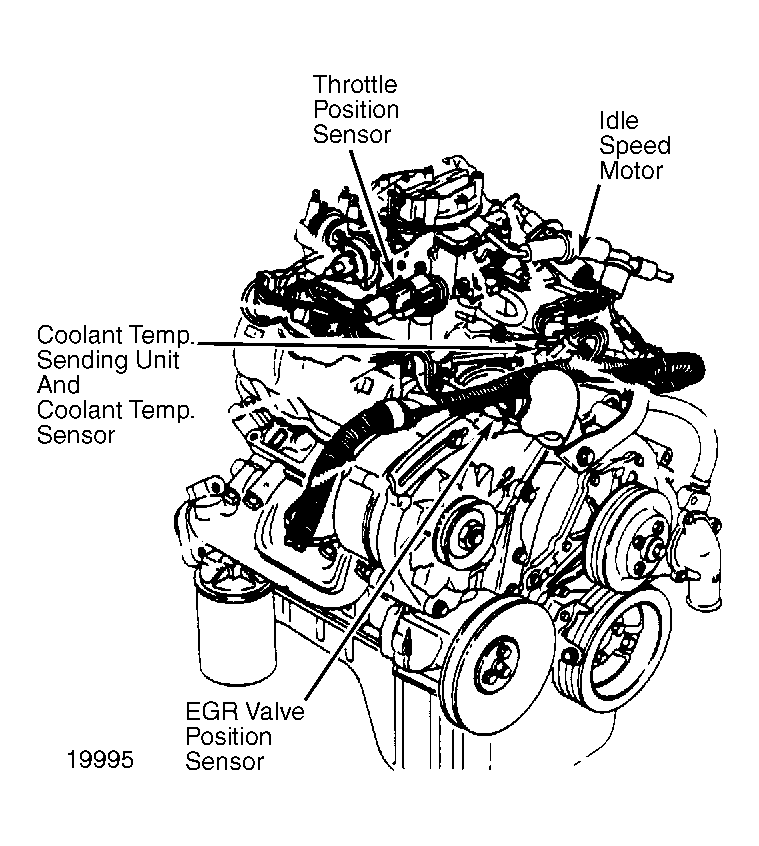

| Idle Speed Motor | On left front side of carburetor. See Figure. |
| Lift Gate Washer Pump | In cargo area, right rear quarter panel. |
| Lift Gate Wiper Motor | In center of lift gate. |
| Windshield Washer Pump | On bottom of windshield washer reservoir. |
| Windshield Wiper Motor | In engine bay, on center of firewall. |
