Equipment Hook-Up

With ignition off, connect a timing light to engine. Connect a jumper wire from the Self-Test input to ground. Connect a DC voltmeter (0-20V range) to battery positive terminal and Self-Test output terminal No. 4. See Fig 1 .

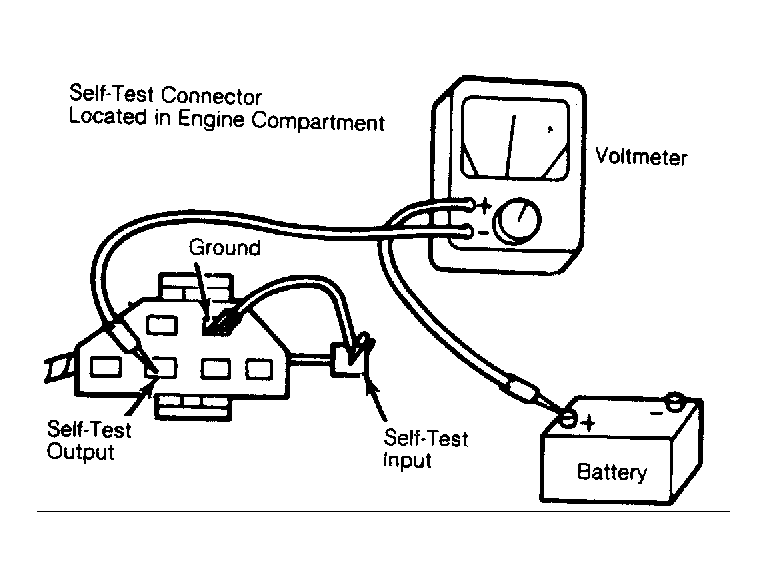

Fig 1: Meter Hook-Up for Reading Codes (This applies to all models)
